10/5 To 60/40 520nm Optical Glass Filters , Short Pass Filter For Optical Instruments
Product Specification
Place of Origin:
China
Brand Name:
Advance
Certification:
ROHS\Reach
Model Number:
as requirements
Minimum Order Quantity:
1
Price:
$0.2~$100
Payment Terms:
T/T&L/C
Supply Ability:
1000k/per month
Product Details
Highlight:
60/40 520nm Optical Glass Filters
,520nm 60/40 Optical Glass Filters
,520nm 60/40 10/5 short pass filter
Customized Support:
OEM, ODM
Use:
Short Pass Filter
Material:
Optical Glass
Focal Length:
Custom
Coating:
Upon Request
Diameter:
25 Mm
Diameter Tolerance:
+/-0.005mm
Surface Accuracy:
N=1~3
Centerthickness Tolerance:
+/-0.01mm
Focal Length Tolerance:
+/-1%
Surface Quality:
10/5~60/40
Application Area:
Optical Instruments
Interface Type:
Canon EF-S
Centerthickness:
5 Mm
Width Tolerance:
+/-0.01mm
Style:
Antique
Shape:
Spherical
Operatingtemperature:
-20 To 70 °C
Filter Ring Color:
(customizable)
Coating Choice:
(customizable)
Refractiveindex:
1.52
Focal Length:
150mm
Product Description
10/5 To 60/40 520nm Optical Glass Filters, Short Pass Filter For Optical Instruments
The 10/5 To 60/40 520nm Optical Glass Filters, Short Pass Filter For Optical Instruments is a precision-engineered optical component designed to transmit wavelengths below 520 nm while effectively blocking longer wavelengths in the visible and near-infrared spectrum. This short-pass filtering characteristic makes it highly valuable in optical systems where spectral separation, signal enhancement, and contrast improvement are required.
Manufactured using high-grade optical glass substrates with advanced multilayer interference coatings, the filter ensures sharp spectral cut-off characteristics and high transmission efficiency in the passband region. The surface quality options of 10/5 to 60/40 scratch-dig levels provide flexibility for different optical system requirements, from high-end scientific instrumentation to industrial optical devices.
The 520 nm cut-off point is particularly important in applications involving green fluorescence suppression, RGB spectral separation, and optical calibration systems. By blocking wavelengths above 520 nm, the filter enhances imaging clarity, reduces background noise, and improves detection sensitivity in optical instruments. This makes it suitable for both laboratory-grade systems and industrial optical setups requiring stable and repeatable spectral performance.
Application Fields
- Optical Imaging Systems: Enhancing contrast in scientific and industrial imaging devices
- Fluorescence Microscopy: Isolating excitation and emission wavelengths below 520 nm
- Spectroscopy Instruments: Improving wavelength discrimination and measurement accuracy
- Machine Vision Systems: Increasing detection precision by filtering unwanted spectral noise
- Laser Systems: Used for wavelength selection and optical signal conditioning
- Research Laboratories: Optical experiments requiring precise spectral separation
Specifications
| Parameter | Specification |
|---|---|
| Product Name | 10/5 To 60/40 520nm Optical Glass Filters, Short Pass Filter For Optical Instruments |
| Filter Type | Short Pass Filter |
| Cut-off Wavelength | 520 nm |
| Surface Quality | 10/5 to 60/40 Scratch-Dig |
| Material | Optical Glass (High-grade substrate) |
| Coating Type | Multilayer Interference Coating |
| Transmission Range | 350 nm - 520 nm (typical passband) |
| Blocking Range | >520 nm (visible red + NIR suppression) |
| Transmission Efficiency | >90% (within passband) |
| Surface Flatness | λ/4 or better |
| Thickness | 0.5 mm - 3.0 mm (customizable) |
| Operating Temperature | -40°C to +85°C |
| Application | Optical instruments, imaging systems, spectroscopy |
Additional Technical Details
| Materials | BK7 or other optical glass, quartz, sapphire, Ge, Si, ZnSe, CaF2 etc |
|---|---|
| Length | 5~200mm |
| Width | 5~200mm |
| Diameter | 1.5~300mm |
| Center thickness tolerance | +/-0.01mm |
| Length tolerance | +/-0.01mm |
| Width tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.0005mm |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging, Lighting, Laser etc |

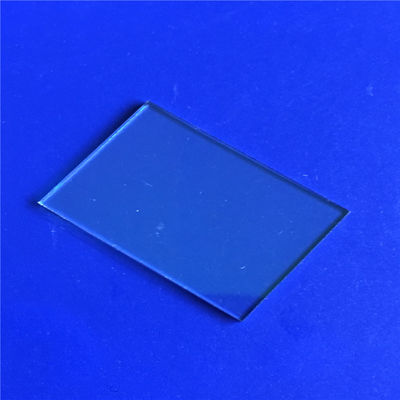

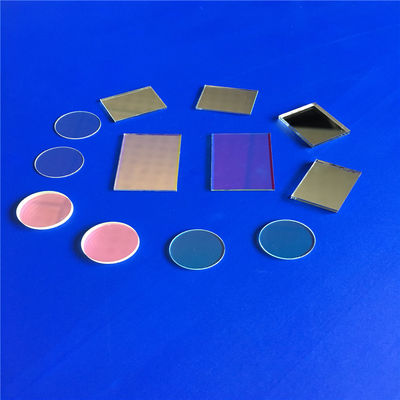

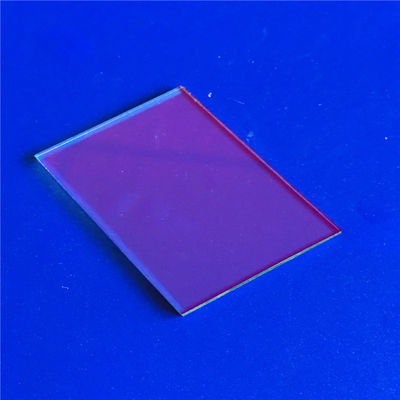

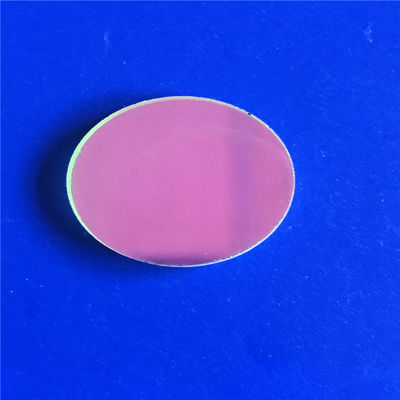

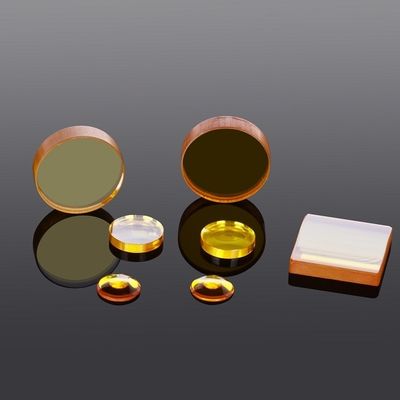

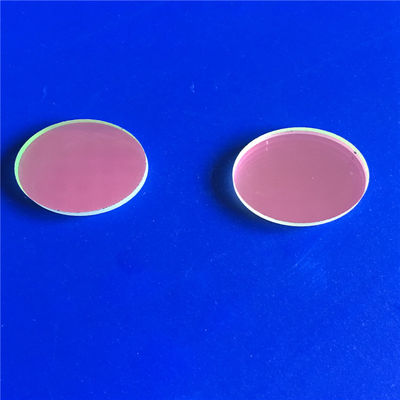

Product Images
Frequently Asked Questions
What is the main function of the 10/5 To 60/40 520nm Optical Glass Filters, Short Pass Filter For Optical Instruments?
It transmits light below 520 nm while blocking longer wavelengths, improving spectral clarity and imaging contrast in optical systems.
Why is 520 nm an important cut-off wavelength?
520 nm corresponds to the boundary between green and red visible light, making it ideal for applications requiring separation of green fluorescence or suppression of longer wavelengths.
What does "10/5 to 60/40 surface quality" mean?
It indicates the scratch-dig surface quality range, where 10/5 represents higher precision and 60/40 represents standard optical quality depending on system requirements.
Can the filter be customized for different optical systems?
Yes, the filter can be customized in thickness, coating design, and size to meet specific optical instrument requirements.
Which industries commonly use this filter?
It is widely used in microscopy, spectroscopy, machine vision, laser systems, and scientific optical research applications.
