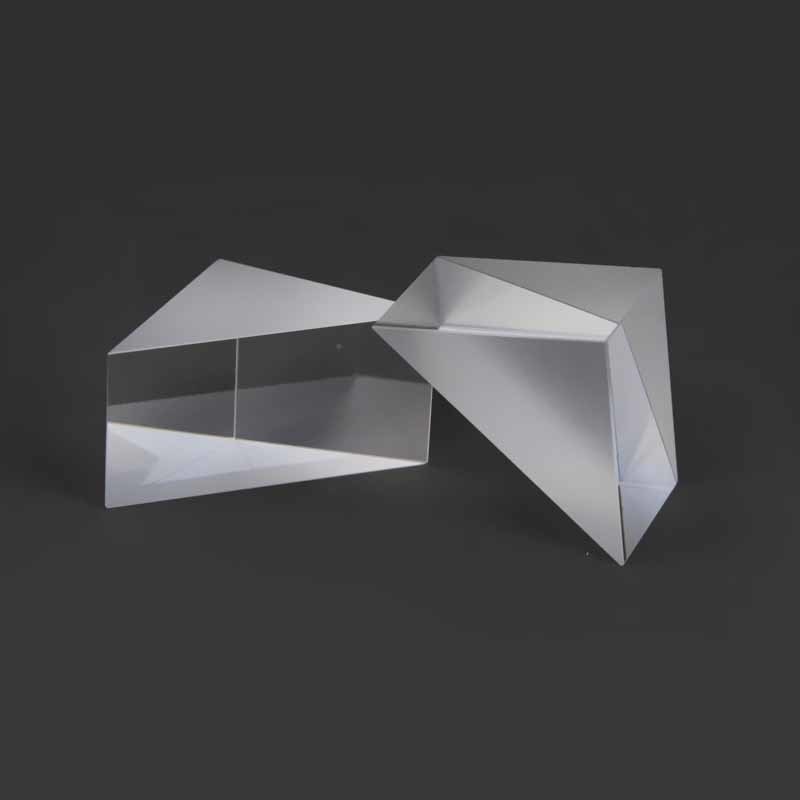

Custom 3-100 mm Optical BK7 Glass Right Angle Prism For Periscope
Product Specification
Place of Origin:
Shanghai, China
Brand Name:
advance
Model Number:
005
Minimum Order Quantity:
10 Pieces
Price:
$100.00/Pieces 10-99 Pieces
Supply Ability:
10000000 Piece/Pieces per Month
Product Details
Material:
BK7 （Customizable）
Customized Support:
OEM, ODM
Length:
3-100mm （Customizable）
Dimension Tolerance:
+/-0.01mm
Width:
3-100mm （Customizable）
Angle Tolerance:
3"~2'
Height:
3-100mm （Customizable）
Flatness:
N=1~3
Length Tolerance:
+/-0.01mm
Width Tolerance:
+/-0.01mm
Surface Quality:
10/5~60/40 （Customizable）
Application Area:
Periscope
Product Description
Custom 3-100 mm Optical BK7 Glass Right Angle Prism For Periscope
The functionality of the Custom 3-100 mm Optical BK7 Glass prism extends beyond simple light bending. When used as a Right Angle Prism For Periscope, the hypotenuse serves as a high-efficiency reflector that can be either uncoated for TIR or treated with protected aluminum or silver to enhance performance at specific angles. Because we offer a Custom 3-100 mm Optical range, designers can implement these prisms in everything from 3mm micro-optical sensors to 100mm heavy-duty marine periscopes. This adaptability, combined with the structural integrity of BK7 Glass, makes the Right Angle Prism For Periscope a gold standard in the defense, maritime, and scientific research sectors. By prioritizing geometric precision, our Custom 3-100 mm Optical solutions ensure that the exit beam is perfectly aligned with the entry beam, eliminating parity errors in complex optical trains.
Product Specifications
| Materials | BK7 or other optical glass, quartz, sapphire, Ge, Si, ZnSe, CaF2 etc |
|---|---|
| Length | 3~100mm |
| Width | 3~100mm |
| Height | 3~100mm |
| Length tolerance | +/-0.01mm |
| Width tolerance | +/-0.01mm |
| Height tolerance | +/-0.01mm |
| Angle tolerance | 3"~2' |
| Irregularity | ΔN=0.1~0.5 |
| Surface accuracy | N=1~3 |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging, Lighting, Laser etc |
Technical Specifications: Benchmarks of the BK7 Periscope Prism
The following table highlights the professional-grade standards applied to our Custom 3-100 mm Optical BK7 Glass production, specifically optimized for the Right Angle Prism For Periscope.
| Feature | Specifications for Custom 3-100 mm Optical | Operational Advantage |
|---|---|---|
| Material Substrate | Optical Grade BK7 Glass (N-BK7) | High clarity for the Right Angle Prism |
| Size Range | Custom 3-100 mm Optical Dimensions | Scalable for any Periscope design |
| Angle Tolerance | < 3 arc minutes to < 30 arc seconds | Precise alignment for Right Angle Prism |
| Surface Quality | 40-20 to 20-10 Scratch-Dig | Low scatter in the Custom 3-100 mm Optical |
| Surface Flatness | λ/4 to λ/10 @ 633nm | Accurate imaging for Right Angle Prism For Periscope |
| Coating Options | AR, Al, Ag, or Uncoated TIR | Optimized throughput for BK7 Glass optics |
| Refractive Index | 1.5168 @ 587.6nm | Stable light path in Custom 3-100 mm Optical |
| Clear Aperture | > 90% of face area | Maximum field of view for Right Angle Prism |
Key Features and Benefits
The Custom 3-100 mm Optical BK7 Glass series is built to provide reliable performance in high-stakes visual systems. Below are the functional benefits and diverse implementations of this Right Angle Prism For Periscope:
- Total Internal Reflection Efficiency: The BK7 Glass allows the Right Angle Prism For Periscope to reflect light with nearly 100% efficiency without the need for metallic coatings in many configurations.
- Extensive Size Customization: Our Custom 3-100 mm Optical capability ensures that whether the application is a micro-drone or a submarine, the Right Angle Prism fits perfectly.
- Exceptional Environmental Stability: BK7 Glass is resistant to chemical stains and environmental degradation, ensuring the Right Angle Prism For Periscope maintains its performance over years of field use.

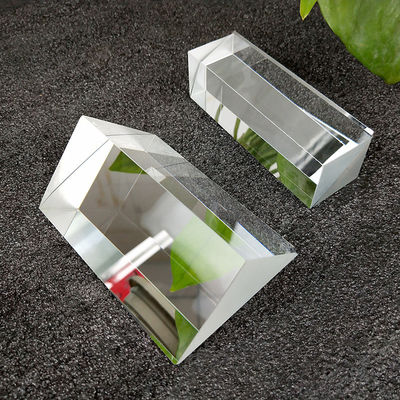

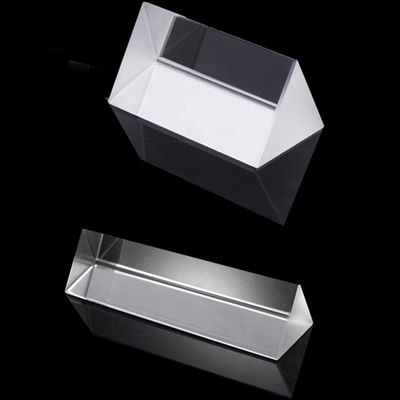

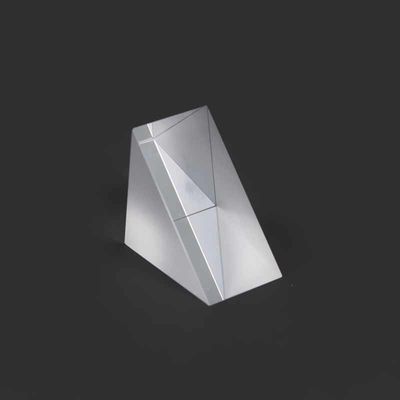

Product Gallery
Expert Product FAQ: Mastering the Right Angle Prism For Periscope
This section provides authoritative technical insights into the selection of the Custom 3-100 mm Optical BK7 Glass.
Q1: Why is BK7 Glass the preferred choice for a Right Angle Prism For Periscope?
Answer: BK7 Glass offers an excellent balance of high transmission in the visible spectrum and physical durability. For a Right Angle Prism For Periscope, this material ensures that the image remains bright and clear, which is vital for the Custom 3-100 mm Optical systems used in surveillance.
Q2: How does the size range of the Custom 3-100 mm Optical affect the image quality?
Answer: While the size changes, our quality standards do not. A 100mm Right Angle Prism For Periscope requires more stringent cooling during BK7 Glass production to prevent internal stress, ensuring the Custom 3-100 mm Optical series remains aberration-free across all scales.
Q3: Can the Right Angle Prism For Periscope be used in high-power laser periscopes?
Answer: Yes, provided the Custom 3-100 mm Optical surfaces are polished to a high laser damage threshold (LDT). We can treat the BK7 Glass with specialized coatings to ensure the Right Angle Prism handles specific laser wavelengths safely.
Q4: What is the benefit of a "Custom 3-100 mm Optical" service for engineering firms?
Answer: It eliminates the need to design around "off-the-shelf" parts. By choosing a Custom 3-100 mm Optical solution, you can specify the exact footprint and height of the Right Angle Prism For Periscope, maximizing space efficiency in your BK7 Glass optical train.
Q5: How do you verify the angle accuracy of the Right Angle Prism?
Answer: Every Custom 3-100 mm Optical BK7 Glass unit is tested using high-precision goniometers. For a Right Angle Prism For Periscope, we ensure the 90-degree and 45-degree angles are within seconds of arc to prevent image tilt or displacement.
