Optical LED Laser BK7 Biconcave Cylindrical Lens
Product Specification
Place of Origin:
Shanghai, China
Brand Name:
Advance
Model Number:
Advance
Minimum Order Quantity:
10 Pieces
Price:
$100.00/Pieces 10-99 Pieces
Supply Ability:
100000 Piece/Pieces per Week
Product Details
Usage:
Optical LED Laser
Customized Support:
OEM, ODM
Materials:
BK7 Quartz Infrared ZnSe CaF2 Etc.
Diameter:
Custom's Requirements
Coating:
AR-coated
Color:
Transparent
Focal Length:
Custom Request
Size:
Customized Size
Product Description

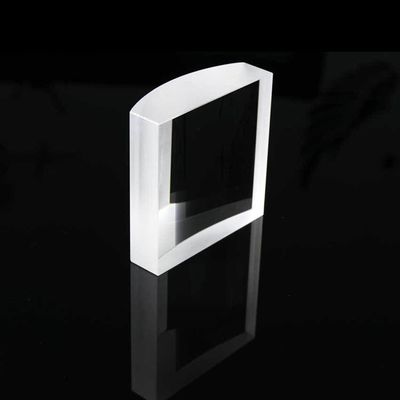

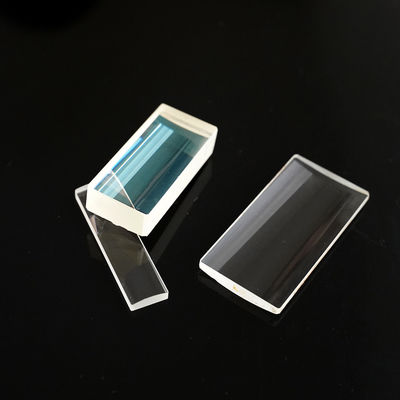

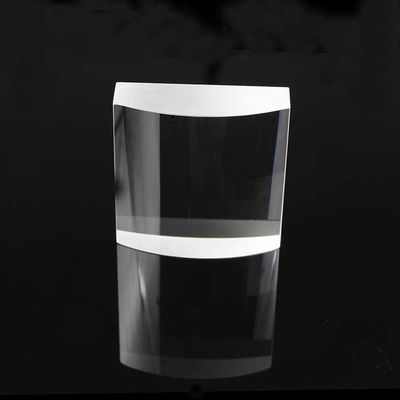

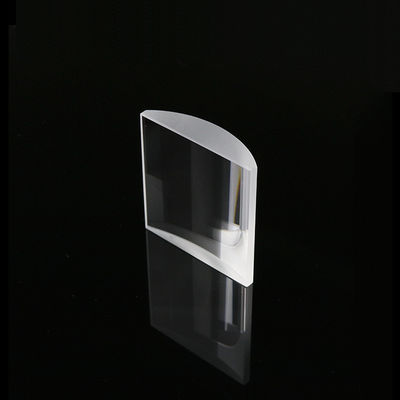

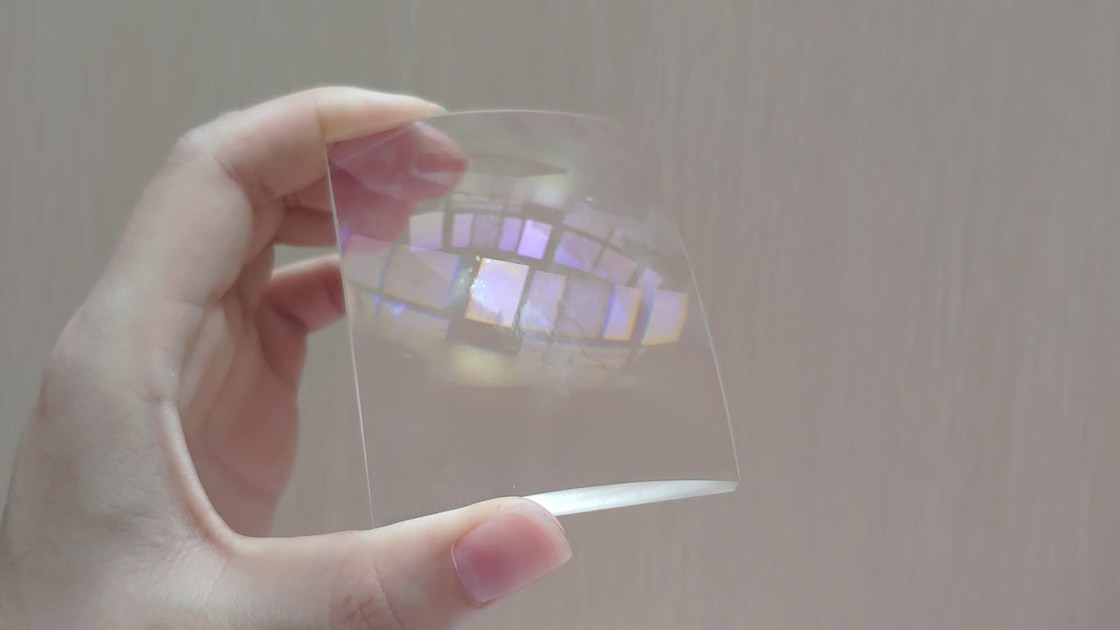

Optical LED Laser BK7 Biconcave Cylindrical Lens
The manufacturing of an Optical LED Laser BK7 Biconcave Cylindrical Lens requires extreme surface accuracy to avoid beam distortion. Each Biconcave Cylindrical Lens is polished to a high surface quality, typically 40-20 scratch-dig, to ensure that the Laser light remains sharp and free from scattering. In LED applications, the Optical LED Laser lens helps in color mixing and spatial homogenization, providing a smooth illumination profile. Because BK7 is a robust and chemically stable material, the BK7 Biconcave Cylindrical Lens maintains its optical properties over long periods of industrial use. Whether integrated into a handheld Laser level or a complex Optical LED Laser medical diagnostic tool, this Biconcave Cylindrical Lens delivers the reliability and refractive power needed for high-stakes optical environments.
Technical Specifications: Benchmarks of the Optical BK7 Lens
The following table details the professional-grade metrics applied to our Optical LED Laser BK7 Biconcave Cylindrical Lens series to ensure compliance with industrial standards.
| Feature | Optical LED Laser BK7 Biconcave Cylindrical Lens | Operational Benefit |
|---|---|---|
| Material Substrate | Optical Grade BK7 Glass | High clarity for Optical LED Laser paths. |
| Lens Type | Biconcave Cylindrical Lens | Single-axis beam expansion for Laser use. |
| Surface Quality | 40-20 to 20-10 Scratch-Dig | Low scatter for high-intensity LED sources. |
| Focal Length Range | -5.0mm to -500mm (Customizable) | Flexible divergence for Biconcave Cylindrical Lens. |
| Centration | < 3 arc minutes | Precise alignment of the Optical LED Laser beam. |
| Coating Options | AR, BBAR, or V-Coat | Maximized transmission for the Laser output. |
| Dimensional Tolerance | ± 0.05mm | Perfect fit for the BK7 Biconcave Cylindrical Lens. |
| Surface Flatness | λ/2 per cm @ 633nm | Maintains wavefront integrity for Optical LED Laser. |
- Range of diameter: Dia.0.7mm-Dia.400mm
- Range of curve radius: R1.5-R∞ etc
- Tolerance of diameter: +/-0.1, +/-0.01, +/-0.005 etc.
- Surface of diameter: λ, 1/2λ, 1/4λ, 1/10λ etc
- Tolerance of Thickness: +/-0.1, +/-0.05, +/-0.01 etc
- Centration: +/-2', +/-1' etc
- Aperture N: 5, 1 etc
- Irregularity ΔN: 2, 1, 0.5, 0.2 etc
- Surface quality: 60/40, 40/20, 20/10, 10/5 etc
Application Areas
- Laser Line Generation: Using the BK7 Biconcave Cylindrical Lens in construction levels and industrial alignment tools.
- Optical LED Laser Scanning: Integrating the Biconcave Cylindrical Lens into 3D scanners and barcode readers for rapid data capture.
- Medical Diagnostics: Utilizing the Optical LED Laser optic for wide-angle illumination in endoscopes and surgical tools.
- Holography and Research: Employing the BK7 Biconcave Cylindrical Lens to create reference beams in laboratory Laser setups.
Expert Product FAQ: Mastering the BK7 Biconcave Cylindrical Lens
This section provides technical insights into the selection and use of the Optical LED Laser BK7 Biconcave Cylindrical Lens.
Q1: Why choose a Biconcave Cylindrical Lens instead of a Plano-Concave one?
Answer: A Biconcave Cylindrical Lens provides more significant divergence in a shorter physical distance compared to a plano-concave lens. This is ideal for compact Optical LED Laser systems where a wide fan angle is required for a Laser line within limited space.
Q2: Is BK7 Glass suitable for high-power Laser applications?
Answer: BK7 is excellent for visible and near-infrared Laser applications. For extremely high-power Optical LED Laser systems, we recommend adding a high-damage-threshold (LDT) coating to your BK7 Biconcave Cylindrical Lens to prevent surface damage.
Q3: Can these lenses be used to expand LED light?
Answer: Yes. While often used with Laser sources, the Biconcave Cylindrical Lens is perfect for LED lighting where you need to create a "wall wash" effect or a linear illumination pattern from a cluster of Optical LED Laser sources.
Q4: What is the benefit of AR coatings on an Optical LED Laser lens?
Answer: An Anti-Reflective (AR) coating on a BK7 Biconcave Cylindrical Lens reduces surface reflections. This ensures that more of the Laser or LED energy reaches the target, increasing the efficiency of the Optical LED Laser system.
Q5: How do I specify the size for a custom BK7 Biconcave Cylindrical Lens?
Answer: You can specify the width, length, and center thickness. Because our Optical LED Laser manufacturing is flexible, we can produce a Biconcave Cylindrical Lens in sizes ranging from 2mm to over 100mm to fit your specific Laser housing.
