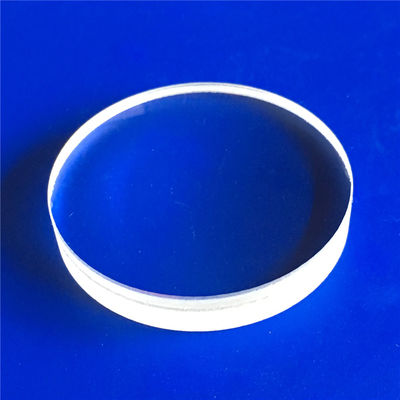

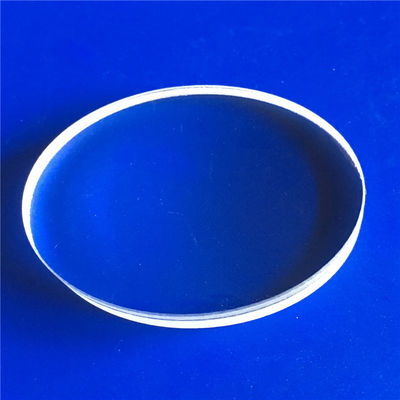

High Precision K9 BK7 Resin Aspherical Optical Lens

I'm Online Chat Now

High Precision K9 BK7 Resin Aspherical Optical Lens

High Precision K9 BK7 Resin Aspherical Optical Lens
High Precision K9 BK7 Resin Aspherical Optical Lens High Precision K9 BK7 Resin Aspherical Optical Lens High Precision K9 BK7 Resin Aspherical Optical Lens High Precision K9 BK7 Resin Aspherical Optical Lens High Precision K9 BK7 Resin Aspherical Optical Lens High Precision K9 BK7 Resin Aspherical Optical Lens

Large Image :  High Precision K9 BK7 Resin Aspherical Optical Lens

Product Details:
Place of Origin: Shanghai, China
Brand Name: Advance
Model Number: 003
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: $100.00/Pieces 10-99 Pieces
Packaging Details: Vacuum+EVA+Carton
Supply Ability: 10000000 Piece/Pieces per Month

High Precision K9 BK7 Resin Aspherical Optical Lens

Description
Warranty: - Customized Support: OEM, ODM
Usage: Optical Structure: Plano-convex
Shape: Spherical Material: BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc
Focal Length: Custom Coating: Upon Request
Diameter Tolerance: +/-0.005mm Surface Accuracy: N=1~0.5
Centerthickness Tolerance: +/-0.001mm Focal Length Tolerance: +/-1%
Surface Quality: 10/5~60/40 Application Area: Imaging,Lighting,Laser Etc
Size: OEM Size Port: Shanghai
Highlight:

Resin Aspherical Optical Lens

,

BK7 Aspherical Optical Lens

,

K9 resin lens

Customized High Precision K9 BK7 Optical Glass Lenses display for Laser Doublet Glued Resin Cemented Lens

Achromatic lens is made of two single lenses by gluing. The performance of multi-color (white light) imaging is much better than that of single lens. Achromatic lenses are glued together by two lenses of different materials to correct the dispersion of the glass. The achromatic lens is widely used in multi-color lighting and imaging, which improves the cost-effectiveness.

Cemented lens
The cemented lens is also called an achromatic lens, which is formed by cementing two single lens elements. The performance of multi-color (white light) imaging is much higher than that of a single lens. The achromatic lens consists of two lenses of different materials glued together to correct the dispersion of the glass. Eliminating the problem of chromatic aberration, achromatic lenses have been widely used in multi-color lighting and imaging, improving cost-effectiveness.

Specification

Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter 1.5~300mm
Radius R0.8mm-∞
Focal length -30000mm~+30000mm
Center thickness tolerance +/-0.01mm
Diameter tolerance +/-0.005mm
Focal length tolerance +/-1%
Surface accuracy N=1~3
Irregularity ΔN=0.1~0.5
Decenter 3''~1''
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc

High Precision K9 BK7 Resin Aspherical Optical Lens 0

High Precision K9 BK7 Resin Aspherical Optical Lens 1

High Precision K9 BK7 Resin Aspherical Optical Lens 2
High Precision K9 BK7 Resin Aspherical Optical Lens 3
High Precision K9 BK7 Resin Aspherical Optical Lens 4

1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 4

Recommend Products
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 5
Company Profile
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 6


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 7
Exhibition
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 8
Packing & Delivery
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 9
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 10

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
