150mm K9 NBK7 Sapphire Cemented Achromatic Convex Lens
Product Specification
Place of Origin:
China
Brand Name:
Advance
Certification:
ROHS\Reach
Model Number:
as requirements
Minimum Order Quantity:
1
Price:
$0.2~$100
Payment Terms:
T/T&L/C
Supply Ability:
1000k/per month
Product Details
Highlight:
Cemented Achromatic Convex Lens
,Sapphire achromatic convex lens
,NBK7 achromatic lens
Warranty:
-
Customized Support:
OEM, ODM
Usage:
Optical
Structure:
Plano-convex
Shape:
Spherical
Material:
Optical Glass
Coating:
Upon Request
Diameter Tolerance:
+/-0.005mm
Surface Accuracy:
N=1~0.5
Centerthickness Tolerance:
+/-0.001mm
Focal Length Tolerance:
+/-1%
Surface Quality:
10/5~60/40
Application Area:
Imaging,Lighting,Laser Etc
Size:
OEM
Focal Length:
Custom
Port:
Shanghai
Interface Type:
Canon EF-S
Diameter:
25 Mm
Centerthickness:
5 Mm
Width Tolerance:
+/-0.01mm
Style:
Antique
Application Area:
Lighting,Laser Etc
Operatingtemperature:
-20 To 70 °C
Filter Ring Color:
Black,Sliver,Gold
Coating Choice:
Green
Refractiveindex:
1.52
Focal Length:
150mm
Product Description

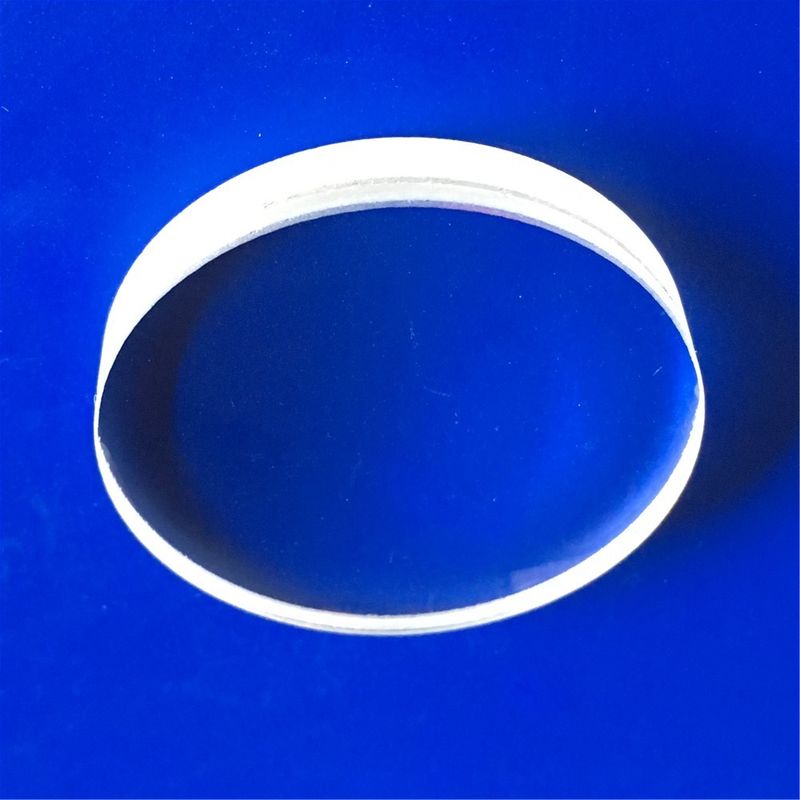

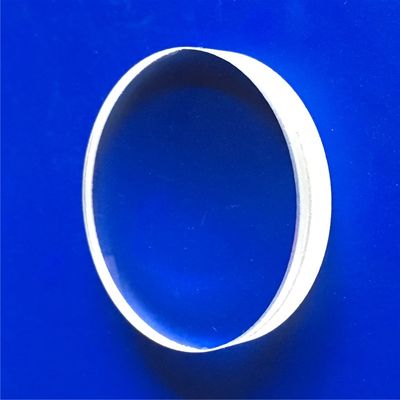

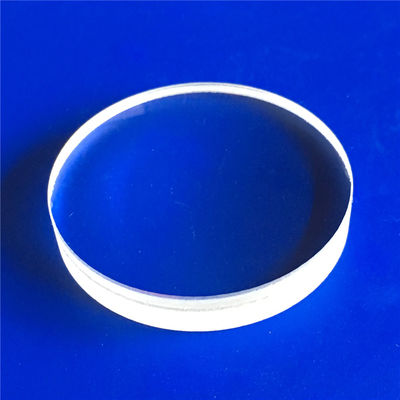

150mm K9 NBK7 Sapphire Cemented Achromatic Convex Lens
Fire Laser pro Smartphone Optical 150mm Diameter K9 N-bk7 Sapphire Cemented Telescope Objective Achromatic Lens
Specifications
| Materials | BK7 or other optical glass, quartz, sapphire, Ge, Si, ZnSe, CaF2 etc |
|---|---|
| Diameter | 1.5~300mm |
| Radius | R0.8mm-∞ |
| Focal length | -30000mm~+30000mm |
| Center thickness tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.005mm |
| Focal length tolerance | +/-1% |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Decenter | 3''~1'' |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging, Lighting, Laser etc |

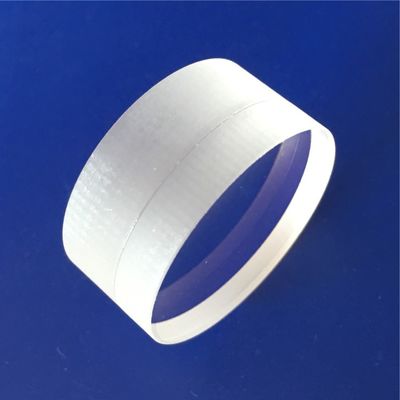

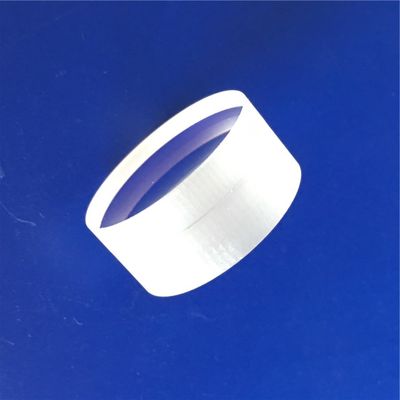

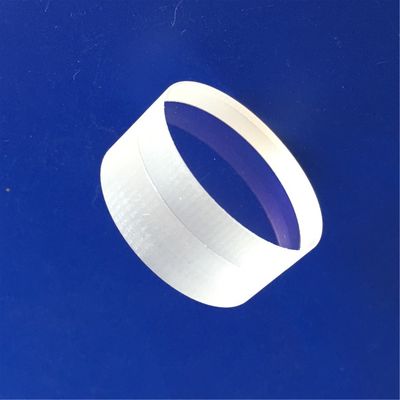

Cemented Lens Technology
The cemented lens, also called an achromatic lens, is formed by cementing two single lens elements. The performance of multi-color (white light) imaging is significantly higher than that of a single lens. The achromatic lens consists of two lenses of different materials glued together to correct the dispersion of the glass.
By eliminating the problem of chromatic aberration, achromatic lenses have been widely used in multi-color lighting and imaging applications, providing improved cost-effectiveness and optical performance.
Company Profile
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise, officially established in September 2009. The plant is located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport.
The company gathers several excellent technicians in the optical industry and has comprehensive supporting capabilities including optical mechanical and electrical design, processing, sales services, and wholeheartedly provides each customer with high-quality and convenient products and services.
Business Scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solutions, technical consultation and after-sales service.
Application Fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, equipment, laser etching, special lighting, scientific research institutions, etc.
Company Advantages
- Comprehensive design, production and sales capabilities, providing customers with one-stop convenient procurement services
- Tens of thousands of optical molds and samples available, providing customers with fast proofing services at low cost
- Ability to participate in customer's new product research and development early, providing feasible plans and suggestions to make projects more efficient
Frequently Asked Questions
Q: What are your main products or which field do your products be used?
A: We are specialized in optical design, optical element processing, lenses assembly. Such as Spherical lens, Aspherical lens, Cylindrical lens, Reflector mirror, Filter, Rod lens, Camera lenses etc. Our products are widely used in imaging, laser, and lighting applications.
Q: What's your advantage?
- We have about ten thousands optical modules and fixtures in stock, and employ several outstanding technicians and managers that enable us to provide customers with excellent quality in short lead times, while saving considerable development costs
- We can help customers optimize optical systems they dislike and provide free optical solutions or suggestions
Q: What's your MOQ?
A: 10 pieces.
Q: What's your lead time?
A: 1 day for inventory items and 25-35 days for new projects.
Q: What's your shipping type?
A: Usually by FedEx, DHL, TNT, EMS etc or customer appointed carriers.
Q: What's the payment condition?
A: T/T, L/C, VISA, PayPal, Alipay or negotiation.
Q: What's your quality guarantee period?
A: Three years.
