1.5mm To 300mm Achromatic Doublet Lens , BK7 Fused Silica Lens
Product Specification
Place of Origin:
China
Brand Name:
Advance
Certification:
ROHS\Reach
Model Number:
as requirements
Minimum Order Quantity:
1
Price:
$0.2~$100
Payment Terms:
T/T&L/C
Supply Ability:
1000k/per month
Product Details
Highlight:
300mm Achromatic Doublet Lens
,1.5mm Achromatic Doublet Lens
,BK7 Fused Silica Lens
Warranty:
-
Customized Support:
OEM, ODM
Usage:
Optical
Structure:
Plano-convex
Shape:
Spherical
Material:
Optical Glass
Focal Length:
Custom
Coating:
Upon Request
Diameter Tolerance:
+/-0.005mm
Surface Accuracy:
N=1~0.5
Centerthickness Tolerance:
+/-0.001mm
Focal Length Tolerance:
+/-1%
Surface Quality:
10/5~60/40
Application Area:
Imaging,Lighting,Laser Etc
Size:
OEM Size
Port:
Shanghai
Interface Type:
Canon EF-S
Diameter:
25 Mm
Centerthickness:
5 Mm
Width Tolerance:
+/-0.01mm
Style:
Antique
Application Area:
Lighting,Laser Etc
Operatingtemperature:
-20 To 70 °C
Filter Ring Color:
Black,Sliver,Gold
Coating Choice:
Green
Refractiveindex:
1.52
Focal Length:
150mm
Product Description
1.5mm To 300mm Achromatic Doublet Lens, BK7 Fused Silica Lens
Wholesale 1.5mm - 300mm Doublet Cemented Achromatic Lens Glued Optical UV Glass Fused Silica Lens
BK7 diameter 18mm focal length 100mm optical glass telescope doublet achromatic cemented lens agglutination balsaming lens
Cemented Lens Technology
The cemented lens, also called an achromatic lens, is formed by cementing two single lens elements. The performance of multi-color (white light) imaging is significantly higher than that of a single lens. The achromatic lens consists of two lenses of different materials glued together to correct the dispersion of the glass. By eliminating the problem of chromatic aberration, achromatic lenses have been widely used in multi-color lighting and imaging applications, improving cost-effectiveness.
Product Specifications
| Materials | BK7 or other optical glass, quartz, sapphire, Ge, Si, ZnSe, CaF2 etc |
|---|---|
| Diameter | 1.5~300mm |
| Radius | R0.8mm-∞ |
| Focal length | -30000mm~+30000mm |
| Center thickness tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.005mm |
| Focal length tolerance | +/-1% |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Decenter | 3''~1'' |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging, Lighting, Laser etc |

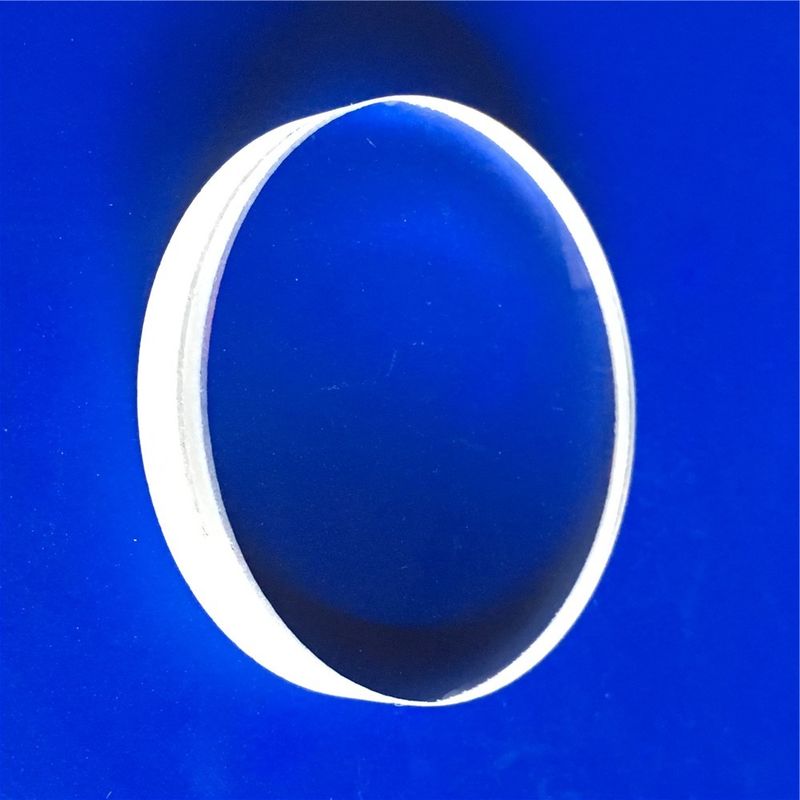

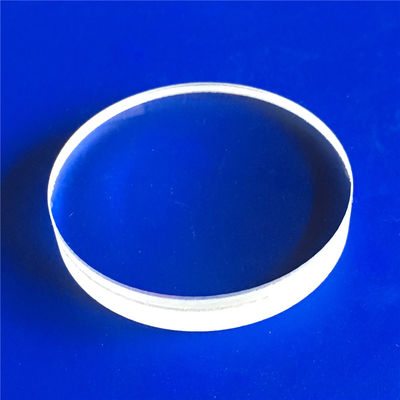

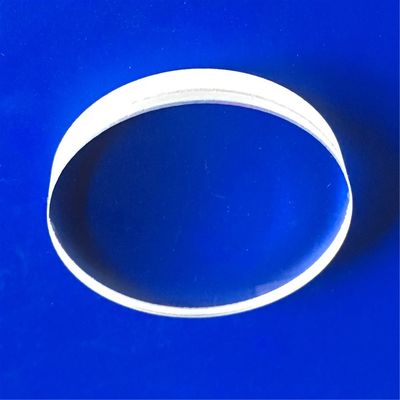

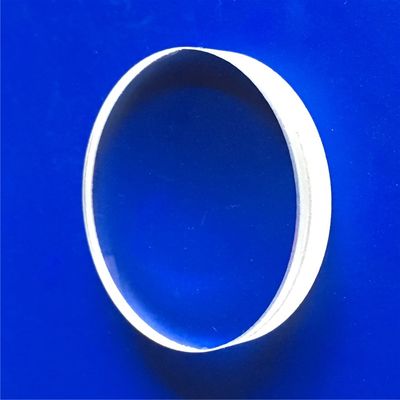

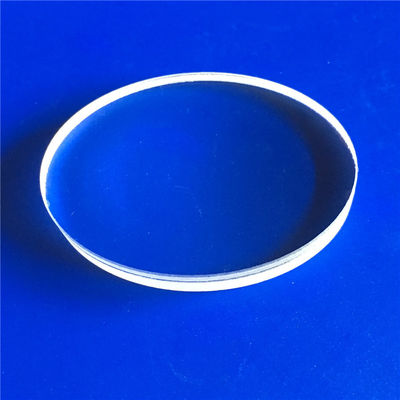

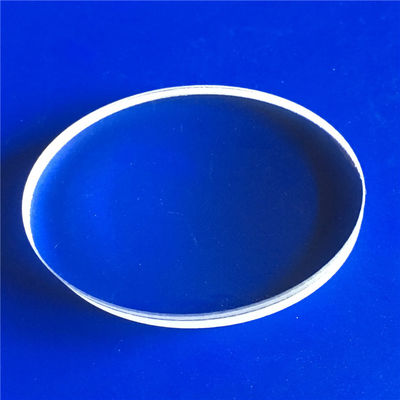

Product Images
Recommended Products
Company Profile
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise, officially established in September 2009. The plant site is located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicians in the optical industry and has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services. We wholeheartedly provide each customer with high-quality and convenient products and services.
Business Scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service.
Application Fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, equipment, laser etching, special lighting, scientific research institutions, etc.
Company Advantages
- Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services
- It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost
- Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours
Certifications
Exhibition
Packing & Delivery
Frequently Asked Questions
What are your main products or Which field do your products be used?
We are specialized in optical design, optical element processing, lenses assembly. Such as Spherical lens, Aspherical lens, Cylindrical lens, Reflector mirror, Filter, Rod lens, Camera lenses etc. Our products are widely used in these fields such as imaging, laser, lighting etc.
What's your advantage?
1. We have about ten thousands optical modules and fixtures in stock, and employ several outstanding technicians and managers. That will enable us to provide customers with excellent quality in short lead time, and also can save plenty of development cost for customers.
2. We can help customers to optimize the optical system which they dislike, and provide free optical solutions or suggestions.
What's your MOQ?
10pcs.
What's your lead time?
1 day for inventory and 25~35 days for new projects.
What's your shipping type?
Usually by Fedex, DHL, TNT, EMS etc or Customer appointed.
What's your payment condition?
T/T, L/C, VISA, Paypal, Alipay or Negotiation.
What's your quality guarantee period?
Three years.
