10mmx60mm Sapphire 0.5mm To 50mm Glass Rod Lens For Laser Machine
Product Specification
Place of Origin:
China
Brand Name:
Advance
Certification:
ROHS\Reach
Model Number:
as requirements
Minimum Order Quantity:
1
Price:
$0.2~$100
Payment Terms:
T/T&L/C
Supply Ability:
1000k/per month
Product Details
Highlight:
60/40 50mm glass rod lens
,60/40 0.5mm glass rod lens
,60/40 Sapphire rod lens
Usage:
Optical
Structure:
Rod
Shape:
Spherical
Product Name:
Rod Lens
Material:
Optical Glass
Diameter:
25 Mm
Length:
0.5-120mm
Diameter/Length Tolerance:
±0.005mm
Surface Accuracy:
N=1-3
Irregularity:
Change In N=0.1-0.5
Surface Quality:
10/5-60/40
Coating:
Upon Request
Application Area:
Lighting,Laser Etc
Interface Type:
Canon EF-S
Centerthickness:
5 Mm
Width Tolerance:
+/-0.01mm
Style:
Antique
Focal Length Tolerance:
+/-1%
Operatingtemperature:
-20 To 70 °C
Filter Ring Color:
Black,Sliver,Gold
Customized Support:
OEM, ODM
Coating Choice:
Green
Refractiveindex:
1.52
Focal Length:
150mm
Product Description
10mmx60mm Sapphire 0.5mm To 50mm Glass Rod Lens For Laser Machine
Product Overview
10*60mm Optical Sapphire Rod Lens for Laser Machine and Custom Lens
Shanghai Advance Optical-Electronics Technology Co., Ltd is a manufacturing enterprise of science and technology. Founded in 2009 and located at QingPu Industry Park, approximately half an hour from HongQiao International Airport. The company gathers excellent technicians from the optical industry and possesses comprehensive capabilities in optical design, manufacturing, and sales services, dedicated to providing high-quality products and best service to every client.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Material | BK7, Quartz, Infrared, Sapphire |
| Diameter | 0.5-50mm |
| Length | 0.5-120mm |
| Diameter Tolerance | ±0.005mm |
| Length Tolerance | ±0.005mm |
| Surface Accuracy | N=1-3 |
| Irregularity | Change In N=0.1-0.5 |
| Surface Quality | 10/5-60/40 |
| Coating | Upon request |
| Application Area | Imaging, Lighting, Laser etc |

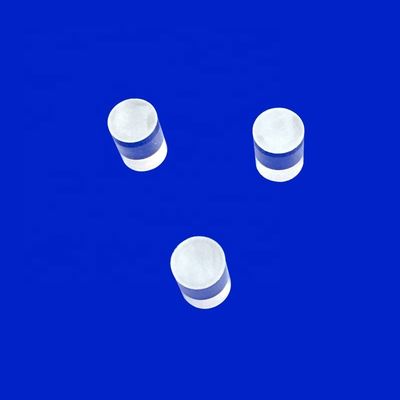

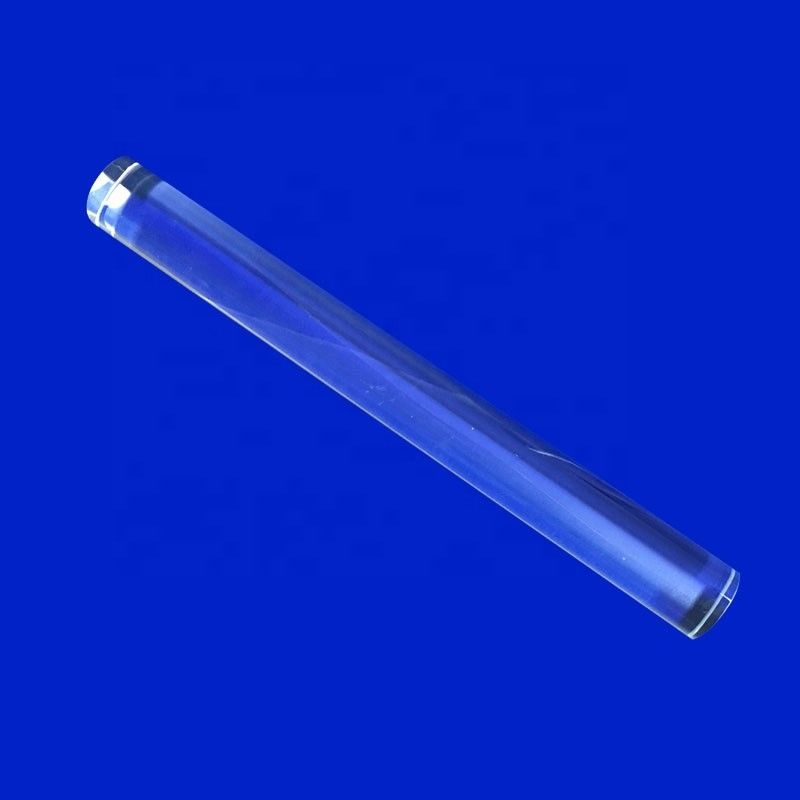

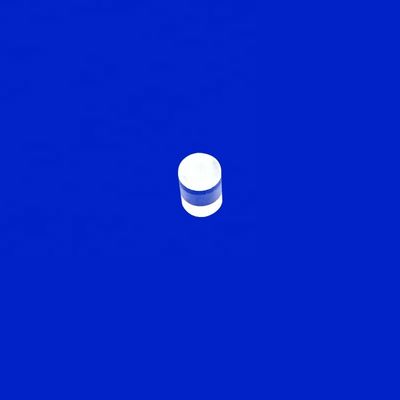

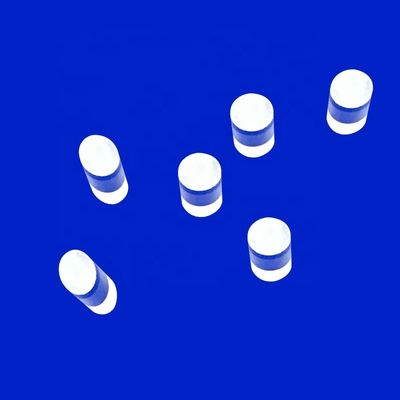

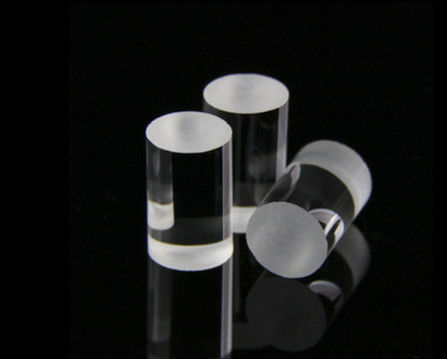

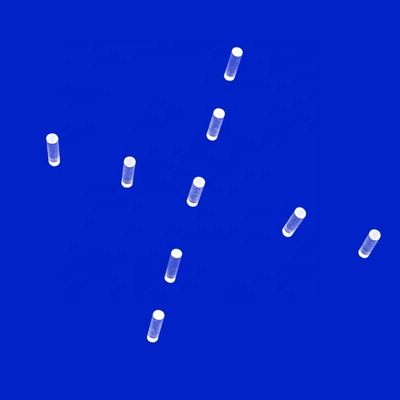

Product Images
