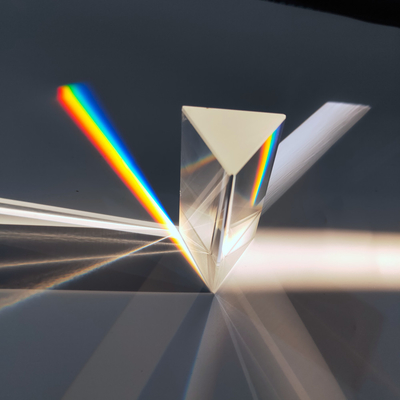

Optical Right Angle Glass Prism Shape Customizable For Lighting

Optical Right Angle Glass Prism Shape Customizable For Lighting
Optical Right Angle Glass Prism Shape Customizable For Lighting

Large Image :  Optical Right Angle Glass Prism Shape Customizable For Lighting

Product Details:
Place of Origin: Shanghai, China
Brand Name: advance
Model Number: 005
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Packaging Details: Vacuum+EVA+Carton
Supply Ability: 10000000 Piece/Pieces per Month
Contact Now

Optical Right Angle Glass Prism Shape Customizable For Lighting

Description
Warranty: - Customized Support: OEM, ODM
Material: BK7 And Other Optical Glass, BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc Surface Quality: 60/40
Dimension Tolerance: +/-0.01mm Angle Tolerance: 3"~2'
Flatness: N=1~3 Length: 3-100mm
Width: 3-100mm Height: 3-100mm
Length Tolerance: +/-0.01mm Width Tolerance: +/-0.01mm
Angle Tolerance: 3"-2' Surface Quality: 10/5~60/40
Application Area: Imaging,Lighting,Laser Etc Coating: Upon Request
Port: Shanghai
High Light:

Right Angle Optical Prism Lens

,

Shape Customizable Fused Quartz Prism

,

Lighting Triangular Glass Prism

Strictly inspected shape customizable optical right angle glass prism



Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. UV Fused Silica Right Angle Prisms are made from UV fused silica which features low thermal expansion and excellent transmission throughout the UV, visible, and NIR spectral ranges.

Specification
Dimensional Tolerance
±0.1mm
Angle Tolerance
±2 Arcmin
Surface Flatness
1/4 Lambda or 1/8Lambda
Surface Quality
60/40, 40/20 or better
Material
BK7/K9/UV fused silica
Clear aperture
>90%
Bevel
Protective bevel as needed
Coating
Custom





Optical Right Angle Glass Prism Shape Customizable For Lighting 0


Optical Right Angle Glass Prism Shape Customizable For Lighting 1
Optical Right Angle Glass Prism Shape Customizable For Lighting 2

Optical Right Angle Glass Prism Shape Customizable For Lighting 3
Optical Right Angle Glass Prism Shape Customizable For Lighting 4

1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 4

Recommend Products
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 5
Company Profile
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 6


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 7
Exhibition
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 8
Packing & Delivery
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 9
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 10

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
