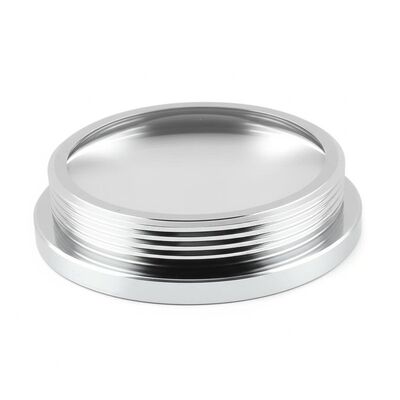

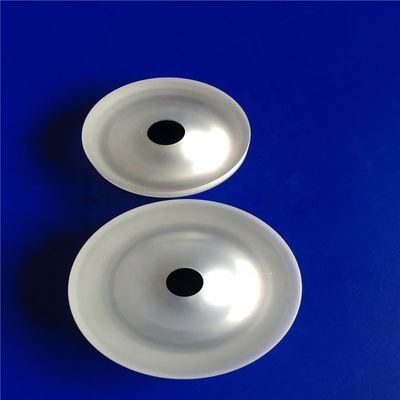

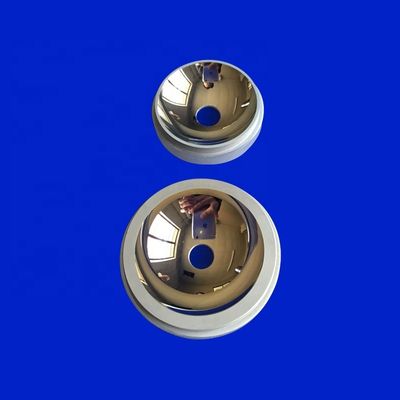

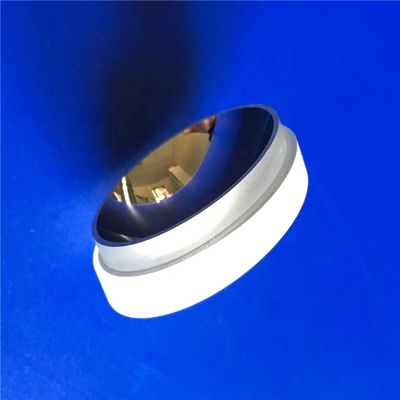

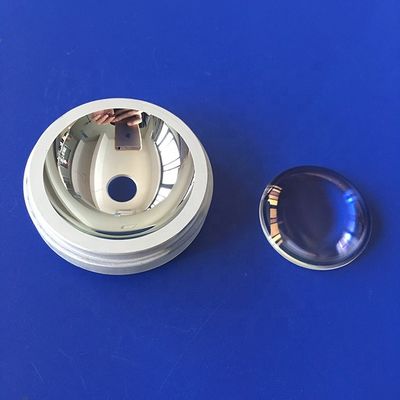

Custom BK7 Material LED Reflector Cup with 25mm Diameter and 150mm Focal Length
Product Specification
Place of Origin:
China
Brand Name:
Advance
Certification:
ROHS\Reach
Model Number:
as requirements
Minimum Order Quantity:
1
Price:
$0.2~$100
Payment Terms:
T/T&L/C
Supply Ability:
1000k/per month
Product Details
Highlight:
Sapphire Round led reflector cup
,Aluminum led reflector cup
,BK7 aluminum reflector cup
Warranty(Year):
2-Year
Lighting Solutions Service:
Lighting And Circuitry Design
Luminous Efficacy(Lm/W):
3600
Material:
Optical Glass
Shape:
Spherical
Style:
Antique
Product Name:
Reflector Cup
Diameter:
25 Mm
Radius:
>0.8mm
Focal Length:
150mm
Surface Accuracy:
N=1-3
Decenter:
3"-1'
Surface Quality:
10/5-60/40
Coating:
Upon Request
Application Area:
Lighting,Laser Etc
Port:
Shanghai Or Requirement
Interface Type:
Canon EF-S
Centerthickness:
5 Mm
Width Tolerance:
+/-0.01mm
Focal Length Tolerance:
+/-1%
Operatingtemperature:
-20 To 70 °C
Filter Ring Color:
Black,Sliver,Gold
Customized Support:
OEM, ODM
Coating Choice:
Green
Refractiveindex:
1.52
Product Description
Custom Aluminum LED Reflector Cup
High-precision sapphire round LED reflector cups designed for superior optical performance in demanding industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Materials | BK7, Quartz, Infrared, Sapphire, Ge, Si, ZnSe, CaF2, etc. |
| Diameter | 1.5-300mm |
| Radius | >0.8mm |
| Focal Length | -30000mm-30000mm |
| Center Thickness Tolerance | ±0.01mm |
| Diameter Tolerance | ±0.005mm |
| Focal Length Tolerance | ±1% |
| Surface Accuracy | N=1-3 |
| Irregularity | Change In N=0.1-0.5 |
| Decenter | 3"-1' |
| Surface Quality | 10/5-60/40 |
| Coating | Upon Request |
| Application Area | Imaging, Lighting, Laser, etc. |

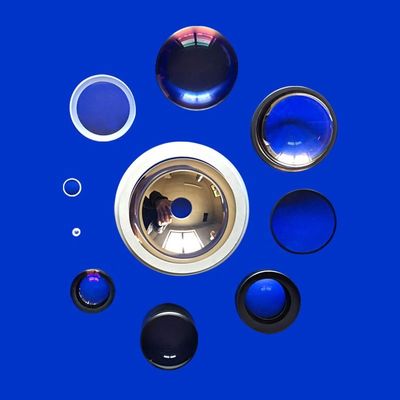

Product Showcase
Technical Process
Our Partners
Applications
Delivery & Logistics
About Our Company
Shanghai Advance Optical-Electronics Technology Co., Ltd specializes in manufacturing optical lenses, located in Shanghai Qingpu District with convenient access from Shanghai Hongqiao Airport. Our vision is to create value and provide convenience to society. With almost 10 years of experience, we have solid and reliable resources for producing different categories of optical and camera lenses, commonly installed on imaging, laser and medical equipment. Quality and competitive pricing are our priority. Customization and timing are our greatest advantages over competitors. We accept OEM and ODM within specification capabilities and provide a one-year warranty for all products.
10+ Years Experience
Industry expertise in optical manufacturing
Custom Solutions
OEM and ODM services available
Quality Guarantee
One-year warranty on all products
Competitive Pricing
Cost-effective optical solutions
Certifications
Frequently Asked Questions
What are your main products and applications?
We specialize in optical design, optical element processing, and lenses assembly including spherical lenses, aspherical lenses, cylindrical lenses, reflector mirrors, filters, rod lenses, and camera lenses. Our products are widely used in imaging, laser, and lighting applications.
What are your advantages?
- We maintain approximately ten thousand optical modules and fixtures in stock, with experienced technicians and managers enabling excellent quality delivery in short lead times while reducing development costs
- We provide free optical solutions and suggestions to help customers optimize their optical systems
What is your minimum order quantity?
10 pieces.
What is your lead time?
1 day for inventory items and 25-35 days for new projects.
What shipping methods do you use?
Typically FedEx, DHL, TNT, EMS, or customer-appointed carriers.
What are your payment terms?
T/T, L/C, VISA, PayPal, Alipay, or negotiated terms.
What is your quality guarantee period?
Three years.
