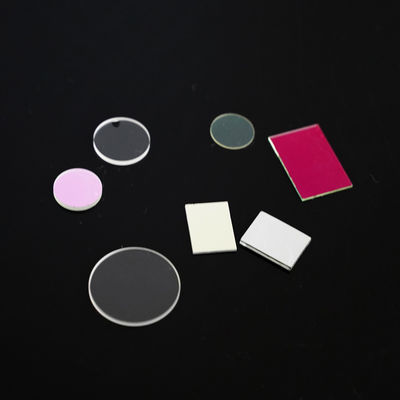

High Precision 5 Mm Center Thickness Custom Optical Filters With Black Filter Ring Color And 500 MWcm2 Damagethreshold Providing Laser Beam Attenuation

Product Description:

The Optical Filter is a high precision component designed to meet the demanding requirements of modern optical systems. Engineered with advanced technology, this filter provides exceptional performance in various applications within the field of optics. It is an essential element for controlling light wavelengths, enhancing signal quality, and improving the overall efficiency of optical devices.

One of the standout features of this Optical Filter is its selectable Full Width at Half Maximum (FWHM) range, which spans from 5nm to 50nm. This flexibility allows users to tailor the filter's spectral bandwidth to suit specific needs, whether for narrowband or broadband filtering. Such versatility makes it ideal for applications requiring precise wavelength discrimination and high spectral resolution.

The product’s physical dimensions are meticulously crafted, with a diameter of 25 mm, making it compatible with a wide array of optical setups. The compact size ensures easy integration into existing systems without compromising performance. Additionally, the focal length tolerance is tightly controlled within +/-1%, guaranteeing consistent optical alignment and minimizing aberrations during use. This precision enhances the reliability and repeatability of optical experiments and industrial processes.

Durability and robustness are critical factors in optical components, and this Optical Filter excels in these areas. It boasts a high damage threshold of 500 MW/cm², allowing it to withstand intense laser beams and high-power light sources without degradation. This makes it particularly suitable for use in laser systems and other high-energy environments where filter longevity and stability are paramount.

Among its various applications, the Optical Filter functions effectively as a Beam Splitter Filter, enabling the division of a beam of light into two or more separate beams. This capability is crucial in complex optical circuits, imaging systems, and laser setups that require precise beam management. The filter’s high-quality coatings ensure minimal insertion loss and excellent reflection/transmission ratios, thereby optimizing system performance.

Furthermore, this product serves as a superior Optical Interference Filter, utilizing constructive and destructive interference principles to selectively transmit or reflect specific wavelengths. Its multilayer dielectric coatings provide sharp cutoffs and high out-of-band rejection, which are essential for applications such as fluorescence microscopy, spectroscopy, and telecommunications. The ability to control light propagation with such accuracy enhances the effectiveness of these technologies.

In addition, the Optical Filter is available as a Dichroic Shortpass Filter, designed to transmit shorter wavelengths while reflecting longer wavelengths. This characteristic is particularly useful in fluorescence and bioimaging applications, where separating excitation and emission light is necessary for clear and accurate measurements. The dichroic filter’s high transmission efficiency and steep spectral edges contribute to improved signal-to-noise ratios and image clarity.

Overall, this Optical Filter combines precision engineering, robust materials, and advanced coating technologies to deliver outstanding performance across a range of optical applications. Whether used as a beam splitter filter, optical interference filter, or dichroic shortpass filter, it provides reliable, high-quality results that meet the stringent standards of modern optics research and industry. Its combination of customizable FWHM, tight focal length tolerance, high damage threshold, and convenient size makes it an invaluable component for optical engineers, researchers, and manufacturers alike.

Features:

• Product Name: Optical Filter
• Application: Optics
• Diameter Range: 2mm to 280mm
• Standard Dimension: 25mm Diameter
• Focal Length: Customizable
• Focal Length Tolerance: +/-1%
• Types Available:
  • Optical Low Pass Filter
  • Optical High Pass Filter
  • IR Cut Off Filter

Technical Parameters:

Applications:

The Advance Optical Filter, model number XJ0018, is a versatile and high-quality optical component designed for a wide range of applications in the optics industry. Manufactured in China and certified with ROHS and Reach, this product guarantees environmental compliance and reliability. With a minimum order quantity of just one unit and a competitive price range from $0.2 to $100, the Advance Optical Filter meets the needs of both small-scale projects and large production demands. The product is carefully packaged using EVA and vacuum techniques to ensure protection during transit, with a delivery time ranging from 1 to 20 days depending on order specifications. Payment can be conveniently made via T/T or L/C, supporting flexible transaction methods.

One of the primary application occasions for the Advance Optical Filter is in precision optics systems where controlling light reflection and transmission is critical. The Optical Reflection Filter variant is extensively used in laser systems, imaging devices, and scientific instruments to manage and reduce unwanted reflections, improving overall system performance. Its optical grade surface and tight width tolerance of +/-0.01mm ensure high reliability and consistency in demanding environments.

In scenarios requiring wavelength selection and signal filtering, the Optical High Pass Filter version of the XJ0018 model excels by allowing only wavelengths above a certain cutoff to pass through. This makes it ideal for telecommunications, spectroscopy, and environmental monitoring applications where specific light bands need to be isolated. The customizable size and focal length tolerance of +/-1% provide additional flexibility to tailor the filter to exact system requirements.

Furthermore, the Optical Narrow Band Filter is critical in applications such as fluorescence microscopy, laser line filtering, and colorimetry. Its precision in filtering a narrow range of wavelengths enables enhanced contrast and sensitivity in optical detection systems. The Advance Optical Filter’s supply ability of up to 1,000,000 units per month ensures it can support both prototyping and mass production needs.

Overall, the Advance Optical Filter XJ0018 model is an essential component for various optical scenarios, including scientific research, industrial inspection, medical imaging, and telecommunications. Its combination of customizable dimensions, high-quality optical surfaces, and certified manufacturing make it a reliable choice for professionals seeking superior optical filtering solutions.

Customization:

Advance presents the XJ0018 Optical Filter, a customizable solution designed to meet diverse optical needs. Manufactured in China and certified with ROHS/Reach, this product ensures high quality and environmental compliance.

Our Optical Edge Pass Filter, Beam Splitter Filter, and Optical Thin Film Filter are available with a minimum order quantity of just 1 unit, priced between $0.2 and $100, making it accessible for both small and large scale projects.

Each filter features a custom focal length and an antique style, crafted with optical grade surfaces and a width tolerance of +/-0.01mm to guarantee precision. The damage threshold is rated at 500 MW/cm², ensuring durability under high power conditions.

Packaging is done carefully using EVA and vacuum methods to protect the filters during transit. We offer a supply ability of 1000k units per month with a delivery time ranging from 1 to 20 days, depending on order specifications.

Payment terms are flexible, accepting T/T or L/C methods to facilitate smooth transactions. Choose Advance's XJ0018 Optical Filters for reliable performance and customizable options tailored to your optical applications.

Support and Services:

Our Optical Filter product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including specifications, installation guides, and usage instructions to assist you in integrating the optical filter into your system seamlessly.

For technical assistance, our team of experts is available to help troubleshoot issues, provide application advice, and offer customization options tailored to your specific needs. We also offer calibration and maintenance services to maintain the accuracy and longevity of your optical filters.

In addition, we provide warranty coverage and repair services to address any manufacturing defects or performance concerns. Our commitment is to deliver reliable support throughout the product lifecycle, enabling you to achieve the best results with our optical filter solutions.

Packing and Shipping:

Each Optical Filter is carefully packed in a protective anti-static bag to prevent dust and scratches during handling.

The filter is then placed in a custom-designed, shock-absorbent box to ensure maximum protection against impact during transit.

For added safety, the boxed filter is enclosed in a sturdy outer carton with cushioning materials to minimize movement and potential damage.

All packages are clearly labeled with handling instructions such as "Fragile" and "Handle with Care" to inform shipping personnel.

We use reliable shipping carriers that provide tracking information and timely delivery to ensure your Optical Filter arrives in perfect condition.

International shipments are packaged according to customs regulations and include all necessary documentation to facilitate smooth clearance.

FAQ:

Q1: What is the brand and model number of this optical filter?

A1: The optical filter is from the brand Advance, and the model number is XJ0018.

Q2: Where is the optical filter manufactured?

A2: This optical filter is made in China.

Q3: What certifications does the Advance XJ0018 optical filter have?

A3: The optical filter is certified with ROHS and REACH standards.

Q4: What is the minimum order quantity and price range for the optical filter?

A4: The minimum order quantity is 1 piece, and the price ranges from $0.2 to $100 depending on specifications.

Q5: How is the product packaged and what is the typical delivery time?

A5: The optical filter is packaged using EVA and vacuum sealing. Delivery time ranges from 1 to 20 days depending on order size.

Q6: What payment terms are accepted for purchasing the Advance optical filter?

A6: Payment can be made via T/T (Telegraphic Transfer) or L/C (Letter of Credit).

Q7: What is the monthly supply capacity of the Advance XJ0018 optical filter?

A7: The supply ability is up to 1,000,000 units per month.
