Product Details:
|
| Customized Support: | OEM, ODM | Usage: | Optical |
|---|---|---|---|
| Structure: | Custom | Material: | BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc |
| Diameter Tolerance: | +/-0.005mm | Focal Length: | 14.5mm |
| Distortion: | <2% | Damage Threshold: | 50J/C㎡ |
| Screw Thread: | As Requirement | Application Area: | Imaging,Lighting,Laser Etc |

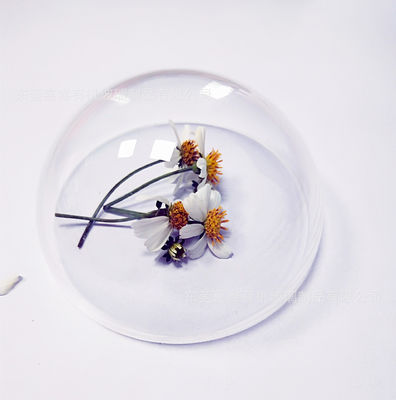

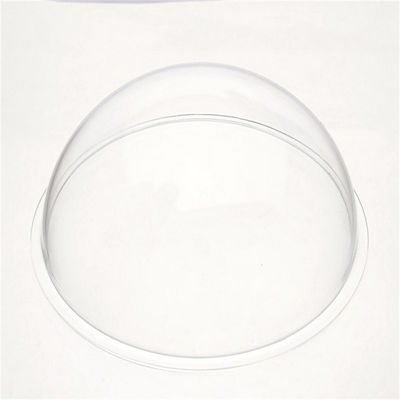

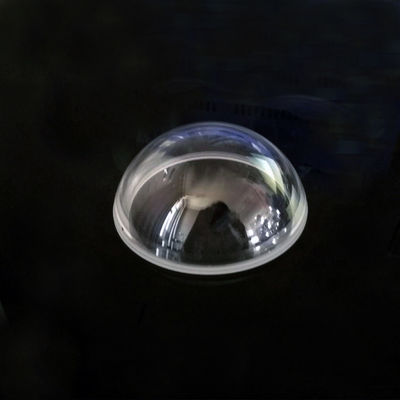

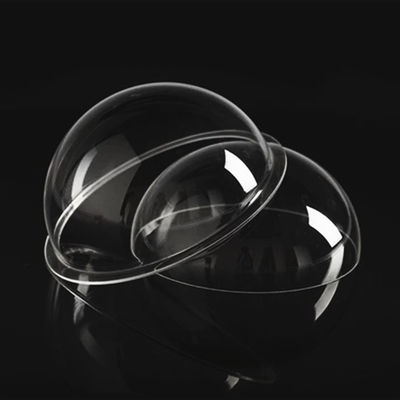

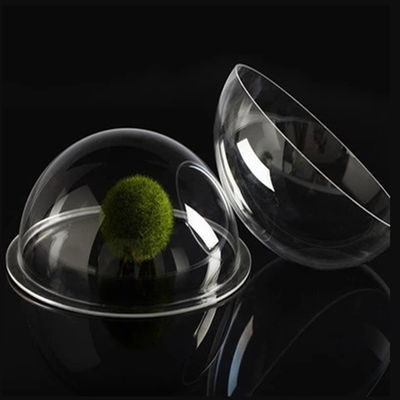

| High Light: | 43mm Optical Glass Lens,1.5mm Optical Glass Lens,300mm Half Ball Lenses |
||

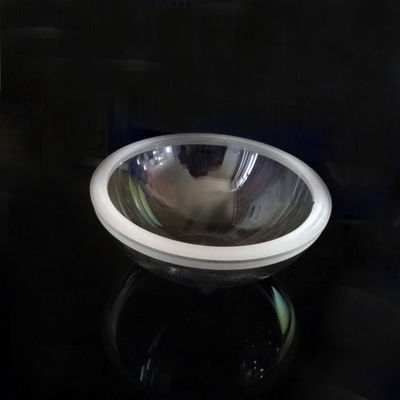

Concave lenses, are a simple lens with one spherical face and one flat plano face. Because the spherical face is concave the lens has a negative focal length, allowing the part to increase the divergence of convergent light. Concave lenses can be used to balance out the spherical aberrations caused by other lenses. This makes concave lenses very useful for controlling laser beams.
Being a simple lens, concave lenses have a broad range of applications including, but not limited to, focussing and control of laser beams, moderate quality imaging and other optical instruments. In a multi-element optical system they reduce the power of the system. Used on their own they form a diverging cone or virtual image. A typical use for concave lenses would be in a beam expander.
|
Materials
|
BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
|
|
Diameter
|
1.5~300mm
|
|
Radius
|
R0.8mm-∞
|
|
Focal length
|
-30000mm~+30000mm
|
|
Center thickness tolerance
|
+/-0.01mm
|
|
Diameter tolerance
|
+/-0.005mm
|
|
Focal length tolerance
|
+/-1%
|
|
Surface accuracy
|
N=1~3
|
|
Irregularity
|
ΔN=0.1~0.5
|
|
Decenter
|
3''~1''
|
|
Surface quality
|
10/5~60/40
|
|
Coating
|
Upon request
|
|
Application area
|
Imaging,Lighting,Laser etc
|
