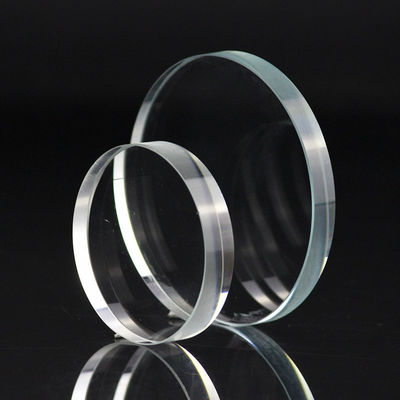

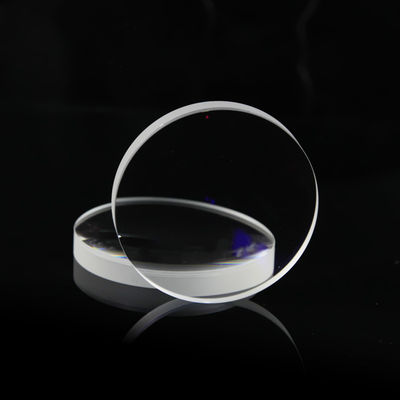

Custom Diameter Plano-Convex Optical Lens with BK7 Material for Precision Imaging and Laser Applications
Product Specification
Place of Origin:
Shanghai, China
Brand Name:
Advance
Model Number:
002
Minimum Order Quantity:
10 Pieces
Price:
$100.00/Pieces 10-99 Pieces
Supply Ability:
10000000 Piece/Pieces per Month
Product Details
Highlight:
Custom Diameter Optical Lens
,Plano-Convex Sapphire Lens
,BK7 Material Glass Lens
Warranty:
-
Customized Support:
OEM, ODM
Usage:
Optical
Structure:
Plano-convex
Shape:
Spherical
Material:
BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc
Focal Length:
Custom
Coating:
Upon Request
Diameter:
Custom
Diameter Tolerance:
+/-0.005mm
Surface Accuracy:
N=1~0.5
Centerthickness Tolerance:
+/-0.001mm
Focal Length Tolerance:
+/-1%
Surface Quality:
10/5~60/40
Application Area:
Imaging,Lighting,Laser Etc
Port:
Shanghai
Product Description
Custom Optical Fused Silica Concave Glass Lens Quartz BK7 Glass Sapphire Double Convex Lens
Product Specifications
| Parameter | Specifications |
|---|---|
| Materials | BK7 or other optical glass, quartz, sapphire, Ge, Si, ZnSe, CaF2 etc |
| Diameter | 1.5~300mm |
| Radius | R0.8mm-∞ |
| Focal length | -30000mm~+30000mm |
| Center thickness tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.005mm |
| Focal length tolerance | +/-1% |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Decenter | 3''~1'' |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging, Lighting, Laser etc |

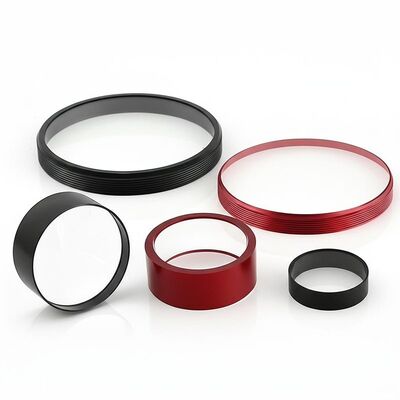

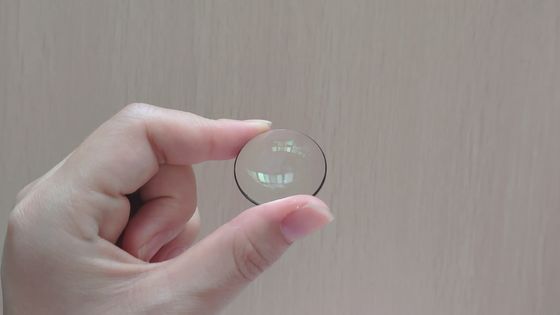

Product Gallery
Recommended Products
Company Profile
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise, officially established in September 2009. Our plant is located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport.
The company gathers several excellent technicians in the optical industry and has comprehensive supporting capabilities including optical mechanical and electrical design, processing, and sales services. We provide each customer with high-quality and convenient products and services.
Business Scope
Optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solutions, technical consultation and after-sales service.
Application Fields
Machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
Company Advantages
- Comprehensive design, production and sales capabilities, providing customers with one-stop convenient procurement services
- Tens of thousands of optical molds and samples available for fast proofing services with low cost
- Early participation in customer's new product research and development, providing feasible plans and suggestions to minimize project detours
Certifications
Exhibition
Packing & Delivery
Frequently Asked Questions
Q: What are your main products or which field do your products be used?
A: We are specialized in optical design, optical element processing, and lenses assembly. Our products include spherical lens, aspherical lens, cylindrical lens, reflector mirror, filter, rod lens, camera lenses etc. These are widely used in imaging, laser, and lighting applications.
Q: What's your advantage?
- We have about ten thousands optical modules and fixtures in stock, and employ several outstanding technicians and managers. This enables us to provide customers with excellent quality in short lead times while saving substantial development costs.
- We can help customers optimize optical systems they're dissatisfied with and provide free optical solutions or suggestions.
Q: What's your MOQ?
A: 10 pieces.
Q: What's your lead time?
A: 1 day for inventory items and 25-35 days for new projects.
Q: What's your shipping type?
A: Usually by FedEx, DHL, TNT, EMS etc or customer appointed carriers.
Q: What's your payment condition?
A: T/T, L/C, VISA, Paypal, Alipay or negotiation.
Q: What's your quality guarantee period?
A: Three years.
