Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens

Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens
Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens

Large Image :  Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens

Product Details:
Place of Origin: Shanghai, China
Brand Name: Advance
Model Number: 001
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: Vacuum+EVA+Carton
Supply Ability: 10000000 Piece/Pieces per Month

Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens

Description
Vision Effect: Lenticular Lenses Color: Clear
Focal Length: Custom Diameter: Custom
Diameter Tolerance: +/-0.005mm Surface Accuracy: N=1~0.5
Centerthickness Tolerance: +/-0.001mm Focal Length Tolerance: +/-1%
Surface Quality: 10/5~60/40 Application Area: Imaging,Lighting,Laser Etc
Highlight:

BK7 Bi Concave Lens

,

300mm bi concave lens

,

1mm concave glass

Focal Length Concave Glass Nova Display Fiber Uncoated Plano-concave (pcv) Lenses Biconcave Lens



    Optical glass, also called optical lens, glass lens and optical glass lenses, is always divided into plano-convex (PCX), double-convex (DCX), plano-concave (PCV) and double-concave (DCV) lens.



    The materials are always soda-lime, borosilicate and quartz. The diameters range from 1 mm to 300 mm and tolerance is controlled below ±0.1 mm. Our glass lens can resist scratching, which lengthen its service lifetime. Besides it is easy to clean and maintain because the smooth and polishing glass are not easy to contaminated by oil or other chemicals. Apart from that, quartz glass have high light transmittance up to 95%.


    OG-01: We can produce various sizes of concave and convex optical glass lenses for different applications.

Optical lenses are widely used in daily life, science, education and industry, such as lights, camera, microscopes, telescopes, collimators and so on.



Specification
Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter 1.5~300mm
Radius R0.8mm-∞
Focal length -30000mm~+30000mm
Center thickness tolerance +/-0.01mm
Diameter tolerance +/-0.005mm
Focal length tolerance +/-1%
Surface accuracy N=1~3
Irregularity ΔN=0.1~0.5
Decenter 3''~1''
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc

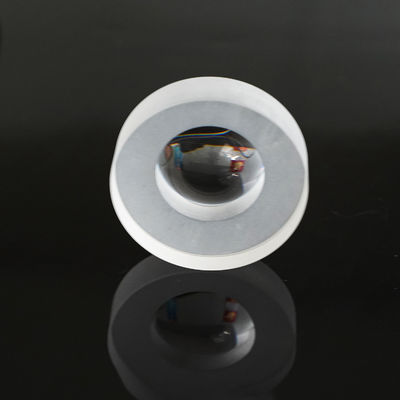

Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens 1

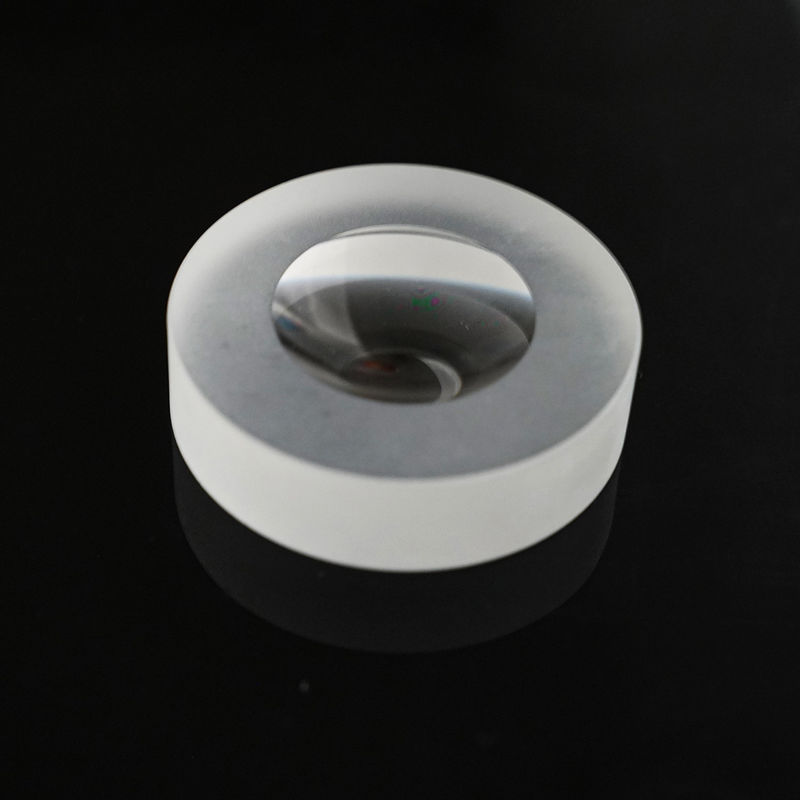

Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens 3

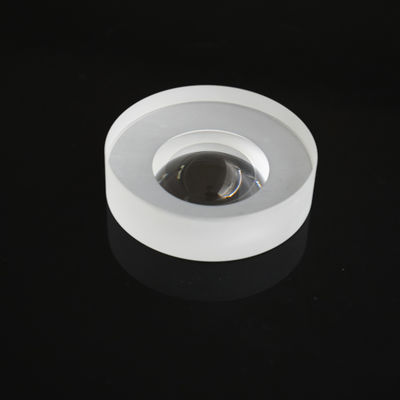

Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens 5

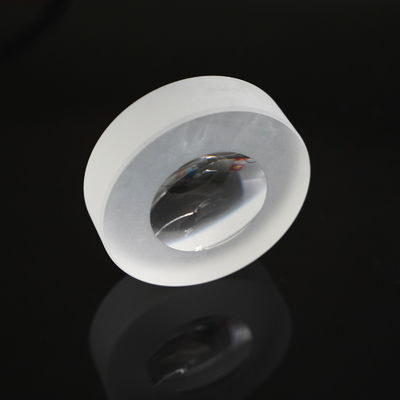

Lighting Uncoated 1mm To 300mm BK7 Bi Concave Lens 7
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 4
Recommend Products
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 5
Company Profile
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 6


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 7
Exhibition
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 8
Packing & Delivery
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 9
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 10

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
.
