Product Details:
|
| Warranty: | - | Customized Support: | OEM, ODM |
|---|---|---|---|
| Usage: | Optical | Structure: | Plano-convex |
| Shape: | Spherical | Material: | BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc |
| Focal Length: | Custom | Coating: | Upon Request |
| Diameter: | 1.5~300mm | Diameter Tolerance: | +/-0.005mm |
| Surface Accuracy: | N=1~3 | Centerthickness Tolerance: | +/-0.01mm |
| Focal Length Tolerance: | +/-1% | Surface Quality: | 10/5~60/40 |
| Application Area: | Imaging,Lighting,Laser Etc | Port: | Shanghai |
| High Light: | ND1000 Optical Filter,100mm optical filter,Square camera filter |
||

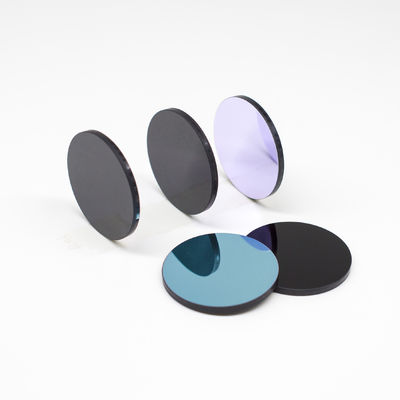

An optical bandpass filter has a transmission band surrounded by two blocking bands that allow only a portion of the spectrum to pass. These optical bandpass filters have broad spectral bandwidths in either the ultraviolet, visible, or infrared spectrums. The nearly black filters absorb visible radiation. They are perfect for ultraviolet or infrared detection applications. UV filters are often used to selectively transmit the 254nm and 365nm mercury lines. IR filters are often used in nightvision and IR sensing systems.
Bandpass Filter Kits: 8 filter set available. Contains U-330, U-340, BG-3, BG-18, BG-38, B-390, VG-9, and RT-830 glass types. Wooden storage box with foam lining included.
| Materials | BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc |
| Length | 5~200mm |
| Width | 5~200mm |
| Diameter | 1.5~300mm |
| Center thickness tolerance | +/-0.01mm |
| Length tolerance | +/-0.01mm |
| Width tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.0005mm |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging,Lighting,Laser etc |
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
