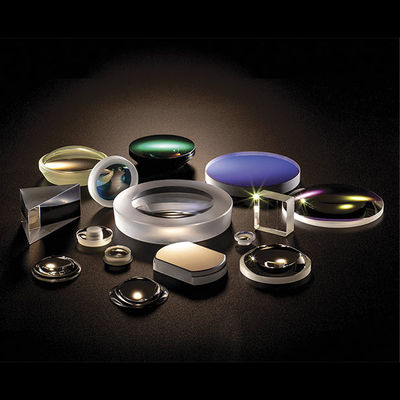

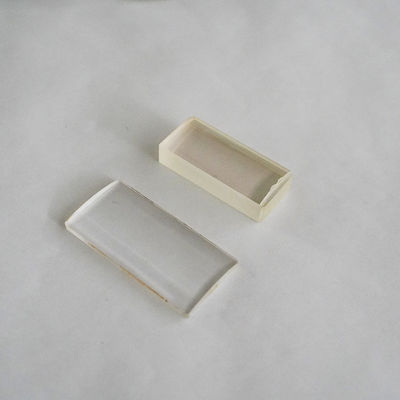

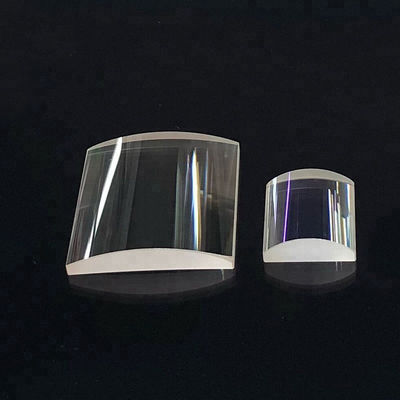

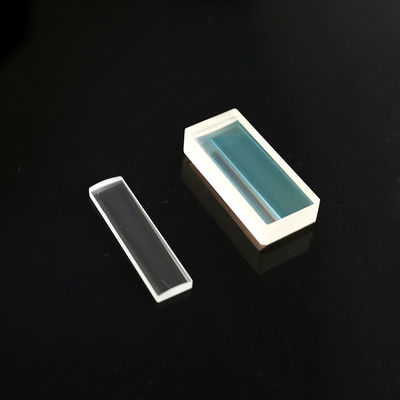

Convex Lens BK7 Optical Glass Cylindrical Plano Convex Lens For Optical Instruments
Product Specification
Place of Origin:
Shanghai, China
Brand Name:
Advance
Model Number:
Advance
Minimum Order Quantity:
10 Pieces
Price:
$100.00/Pieces 10-99 Pieces
Supply Ability:
100000 Piece/Pieces per Week
Product Details
Application:
Optical Instruments
Customized Support:
OEM, ODM
Materials:
BK7 Quartz Customizable
Coating:
AR-coated
Diameter:
Custom's Requirements
Size:
Customized Size
Product Description
Convex Lens BK7 Optical Glass Cylindrical Plano Convex Lens For Optical Instruments
In the field of high-precision optics, the Convex Lens BK7 Optical Glass series is recognized as a fundamental component for advanced light manipulation. Specifically, the Cylindrical Plano Convex Lens is designed to focus light into a sharp, uniform line rather than a single point, making it an essential optic for various scanning and alignment systems.
By utilizing premium BK7 Optical Glass, these lenses offer high homogeneity and low bubble content, ensuring maximum transmittance across the visible spectrum. The unique geometry of the Cylindrical Plano Convex Lens—featuring one flat surface and one cylindrical curved surface—allows for the compression of light in only one dimension. This capability is critical for optical instruments that require beam shaping, such as laser levels, barcode scanners, and high-resolution imaging devices.
Technical Specifications: Benchmarks for Optical Instruments
To support precision engineering, the following table details the technical parameters applied to our Convex Lens BK7 Optical Glass and Cylindrical Plano Convex Lens production.
| Feature | Convex Lens BK7 Optical Glass | Cylindrical Plano Convex Lens |
|---|---|---|
| Material Substrate | Optical Grade BK7 Glass | High-Clarity BK7 Optical Glass |
| Lens Geometry | Cylindrical Plano Convex Lens | One flat, one cylindrical face |
| Surface Quality | 40-20 to 20-10 Scratch-Dig | Optimized for Optical Instruments |
| Focal Length Range | 5mm to 1000mm | Accurate for Cylindrical Plano Convex Lens |
| Centration | < 3 arc minutes | High-fidelity Optical Instruments fit |
| Coating Options | AR, BBAR, or V-Coat | Enhances Convex Lens BK7 Optical Glass |
| Dimensional Tolerance | ±0.05mm to ±0.1mm | Precision for Optical Instruments |
| Surface Flatness | λ/4 @ 633nm | Maintains Cylindrical Plano Convex Lens path |
Detailed Specifications
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface of diameter | λ, 1/2λ, 1/4λ, 1/10λ etc |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc |
| Centration | +/-2', +/-1' etc |
| Aperture N | 5, 1 etc |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc |
Application Areas
- Laser Scanning: Utilizing the Cylindrical Plano Convex Lens in 3D scanners and barcode readers for data acquisition.
- Medical Diagnostics: Implementing Convex Lens BK7 Optical Glass in endoscopes and ophthalmology optical instruments.
- Industrial Measurement: Deploying the Cylindrical Plano Convex Lens in laser levels and structured light systems for construction.
- Holography: Using the BK7 Optical Glass to expand and shape reference beams in sophisticated optical instruments.
Expert Product FAQ: Mastering Optical Instruments with BK7
This section provides authoritative technical insights into the selection of the Convex Lens BK7 Optical Glass and Cylindrical Plano Convex Lens.
Q1: What is the main function of a Cylindrical Plano Convex Lens compared to a spherical lens?
Answer: A spherical lens focuses light into a point. In contrast, a Cylindrical Plano Convex Lens focuses light into a line. This is essential for optical instruments that need to project a "light sheet" or a scanning line across a surface.
Q2: Why is BK7 Optical Glass the industry standard for these lenses?
Answer: BK7 Optical Glass is a high-quality crown glass that is extremely hard and resistant to chemical stains. For a Convex Lens BK7 Optical Glass component, this ensures the Cylindrical Plano Convex Lens remains durable and clear even in rugged field-based optical instruments.
Q3: Can I get a Cylindrical Plano Convex Lens with a custom coating?
Answer: Yes. To maximize the efficiency of your Convex Lens BK7 Optical Glass, we can apply Broadband Anti-Reflective (BBAR) coatings. This reduces light loss at the Cylindrical Plano Convex Lens surfaces, which is critical for low-power optical instruments.
Q4: How does the size of the lens affect its performance in Optical Instruments?
Answer: The size determines the light-gathering power. Our Convex Lens BK7 Optical Glass manufacturing covers micro-optics up to large-scale lenses, ensuring the Cylindrical Plano Convex Lens matches the aperture of your specific optical instruments.
Q5: What is the typical surface quality required for a professional Cylindrical Plano Convex Lens?
Answer: Most high-end optical instruments require a surface quality of at least 40-20. Our Convex Lens BK7 Optical Glass process often achieves 20-10, providing a pristine finish that minimizes beam deviation in the Cylindrical Plano Convex Lens.
