Product Details:
|
Warranty: | - | Customized Support: | OEM, ODM |
---|---|---|---|
Usage: | Optical | Structure: | Plano-convex |
Shape: | Cylindrical | Materials: | BK7, Quartz, Infrared, Sapphire, Ge, Si, ZnSe, CaF2, Etc. |
Application: | Optical Elements | Diameter: | Custom's Requirements |
Coating: | AR-coated | Surface Quality: | 60/40 40/20 |
Color: | Transparent | Description: | Bi-Telecentric Lens |
Certificate: | ROHS | Focal Length: | Custom Request |
Size: | Customized Size | Port: | Shanghai |
Highlight: | BK7 Plane Convex Lens,60/40 Cylindrical plane convex lens,60/40 AR Coating optical lenses |

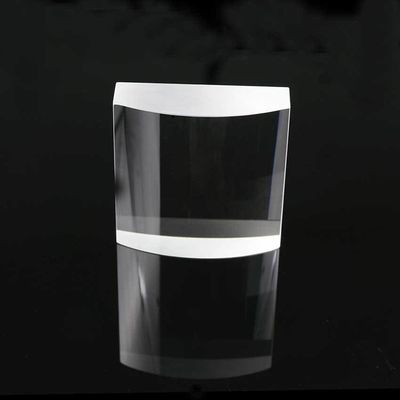

Optical usage glass BK7 half rod cylinder ar coating plano convex cylindrical lens. Cylinder Lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylindrical Lenses have a single cylindrical surface that causes incoming light to be focused in only a single dimension, stretching the image. Cylinder Lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping to circularize laser outputs. Our company is a professional customized-oriented optical company. Our main products are prisms including triangular prisms,penta prisms,roof prisms. Lens such as plano convex,plano concave,biconvex,biconcave. All this products are have kinds of sizes
Range of diameter | Dia.0.7mm-Dia.400mm |
Range of curve radius | R1.5-R∞ etc |
Tolerance of diameter | +/-0.1,+/-0.01,+/-0.005 ect. |
Surface of diameter | λ,1/2λ,1/4λ.1/10λ etc |
Tolerance of Thickness | +/-0.1,+/-0.05,+/-0.01etc |
Centration | +/-2',+/-1' etc |
Aperture N | 5,1 etc |
Irregularity ΔN | 2,1,0.5,0.2 etc |
Surface quality | 60/40,40/20,20/10,10/5 etc |
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
