Product Details:
|
| Warranty: | - | Customized Support: | OEM, ODM |
|---|---|---|---|
| Usage: | Optical | Structure: | Plano-convex |
| Shape: | Cylindrical | Materials: | BK7, Quartz, Infrared, Sapphire, Ge, Si, ZnSe, CaF2, Etc. |
| Application: | Optical Elements | Diameter: | Custom's Requirements |
| Coating: | AR-coated | Surface Quality: | 60/40 40/20 |
| Color: | Transparent | Description: | Bi-Telecentric Lens |
| Certificate: | ROHS | Focal Length: | Custom Request |
| Size: | Customized Size | Port: | Shanghai |
| Highlight: | AR Coating plano convex lens,ZnSe plano convex lens,400mm plano concave lens |
||

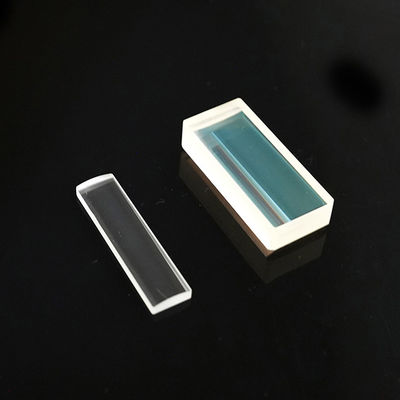

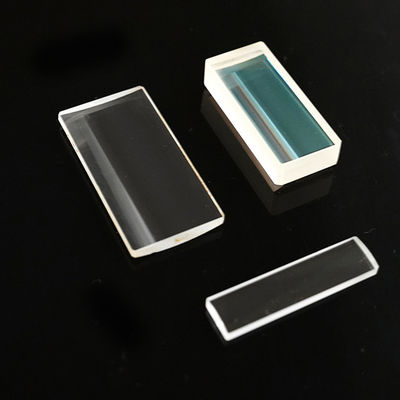

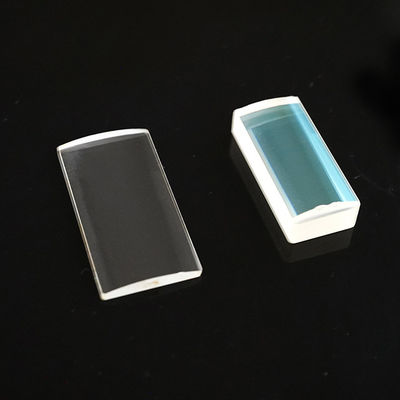

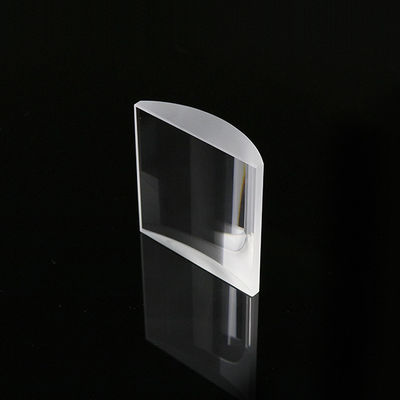

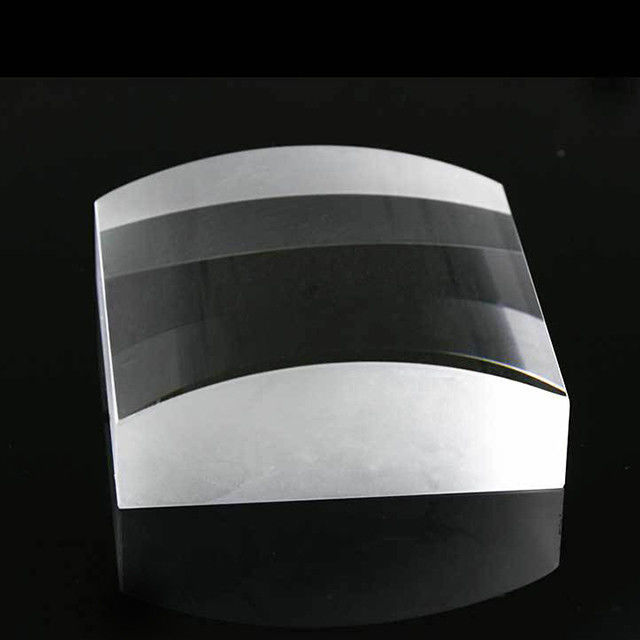

Cylindrical lenses are designed to focus light into a straight line, rather than to a single point. As the name suggests, the lens surface has a cylindrical shape rather than the usual spherical which allows for one dimensional shaping of light along a line. Cylindrical lenses are typically either plano-concave or plano-convex, designed to expand and focus light respectively, and can be supplied in either diameter or rectangular shape for ease of mounting.
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc |
| Tolerance of diameter | +/-0.1,+/-0.01,+/-0.005 ect. |
| Surface of diameter | λ,1/2λ,1/4λ.1/10λ etc |
| Tolerance of Thickness | +/-0.1,+/-0.05,+/-0.01etc |
| Centration | +/-2',+/-1' etc |
| Aperture N | 5,1 etc |
| Irregularity ΔN | 2,1,0.5,0.2 etc |
| Surface quality | 60/40,40/20,20/10,10/5 etc |
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
Company Advantages:
Contact Person: Mr. Zhang
Tel: 13671520516
