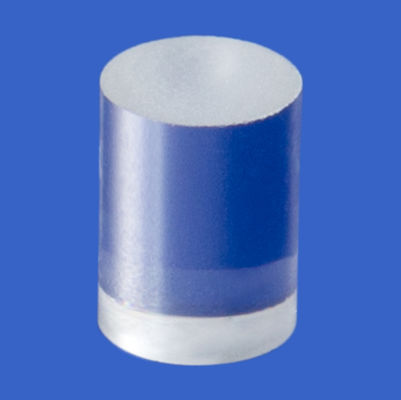

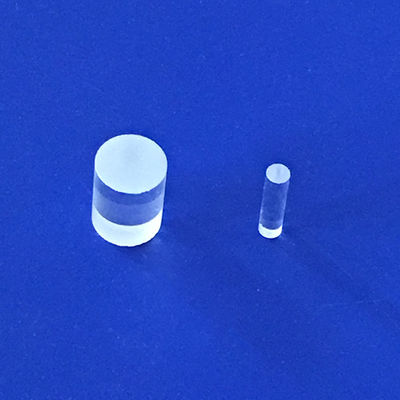

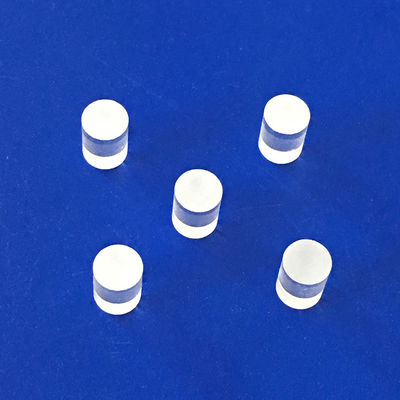

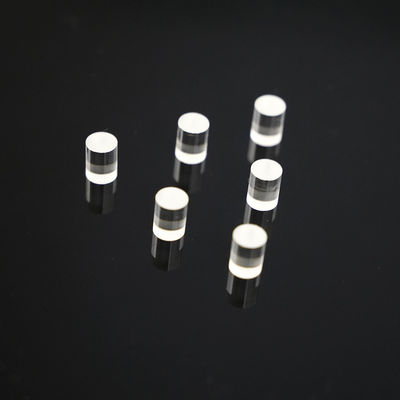

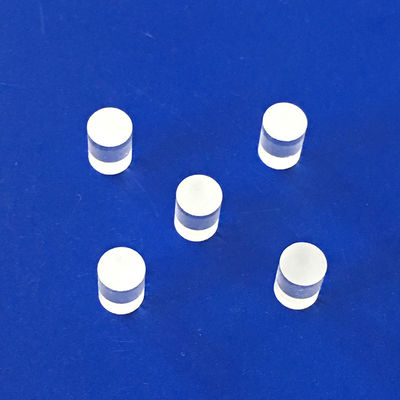

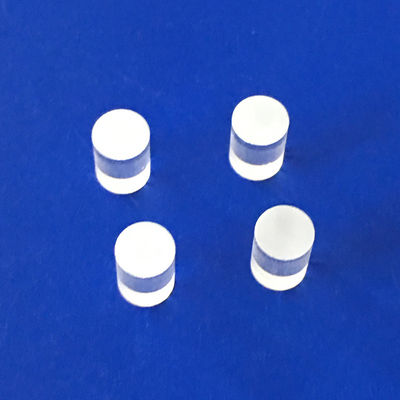

Custom 10/5-60/40 Surface Quality Sapphire Rod Lens with UV to Mid-Infrared Transmission and ±0.005mm Diameter Tolerance for Endoscope Applications
Product Specification
Place of Origin:
China
Brand Name:
Advance
Certification:
ROHS\Reach
Model Number:
as requirements
Minimum Order Quantity:
1
Price:
$0.2~$100
Payment Terms:
T/T&L/C
Supply Ability:
1000k/per month
Product Details
Highlight:
60/40 Rod Lens
,10/5 Rod Lens
,60/40 50mm sapphire rod
Warranty:
-
Customized Support:
OEM, ODM
Usage:
Optical
Structure:
Rod
Shape:
Spherical
Product Name:
Rod Lens
Material:
Optical Glass
Diameter:
25 Mm
Length:
0.5-120mm
Diameter/Length Tolerance:
±0.005mm
Surface Accuracy:
N=1-3
Irregularity:
Change In N=0.1-0.5
Surface Quality:
10/5-60/40
Coating:
Upon Request
Application Area:
Lighting,Laser Etc
Port:
Shanghai Or Requirement
Interface Type:
Canon EF-S
Centerthickness:
5 Mm
Width Tolerance:
+/-0.01mm
Style:
Antique
Focal Length Tolerance:
+/-1%
Operatingtemperature:
-20 To 70 °C
Filter Ring Color:
Black,Sliver,Gold
Coating Choice:
Green
Refractiveindex:
1.52
Focal Length:
150mm
Product Description

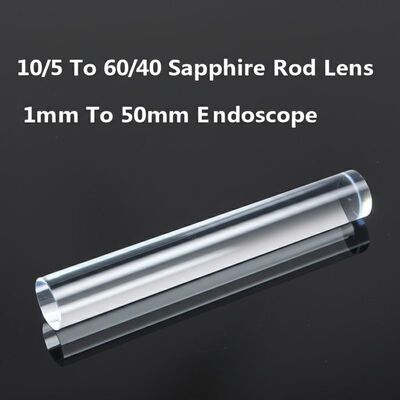

10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope
Custom D1mm~50mm Sapphire JGS1 Quartz Optical Glass Half Cylinder Rod Endoscope Sapphire Rod Lens
Optical JGS1 fused silica quartz glass rod optics endoscope lens.
Sapphire Material Advantages
- Thinner and stronger than standard glass windows
- Transmits wavelengths ranging from UV to mid-infrared
- Features extreme surface hardness and chemical resistance
Sapphire windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.
Technical Specifications
| Material | BK7, Quartz, Infrared, Sapphire |
|---|---|
| Diameter | 0.5-50mm |
| Length | 0.5-120mm |
| Diameter Tolerance | ±0.005mm |
| Length Tolerance | ±0.005mm |
| Irregularity | Change In N=0.1-0.5 |
| Surface Quality | 10/5-60/40 |
| Coating | Upon request |
| Application Area | Imaging, Lighting, Laser etc |
Manufacturer Profile
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise, officially established in September 2009. The plant site is located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport.
The company gathers several excellent technicians in the optical industry and has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services. We provide each customer with high-quality and convenient products and services.
Business Scope
Optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service.
Application Fields
Machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions.
Company Advantages
- Comprehensive design, production and sales capabilities with one-stop convenient procurement services
- Tens of thousands of optical molds and samples for fast proofing services with low cost
- Early participation in customer's new product R&D with feasible plans and suggestions to minimize project detours
Frequently Asked Questions
What are your main products and application fields?
We specialize in optical design, optical element processing, and lenses assembly including spherical lens, aspherical lens, cylindrical lens, reflector mirror, filter, rod lens, camera lenses etc. Our products are widely used in imaging, laser, and lighting applications.
What are your advantages?
- Approximately ten thousand optical modules and fixtures in stock with excellent technicians enabling high quality delivery in short lead times and reduced development costs
- We help customers optimize optical systems and provide free optical solutions and suggestions
What is your minimum order quantity?
10 pieces.
What is your lead time?
1 day for inventory items and 25-35 days for new projects.
What shipping methods do you use?
Typically FedEx, DHL, TNT, EMS or customer-appointed carriers.
What are your payment terms?
T/T, L/C, VISA, PayPal, Alipay or negotiation.
What is your quality guarantee period?
Three years.
