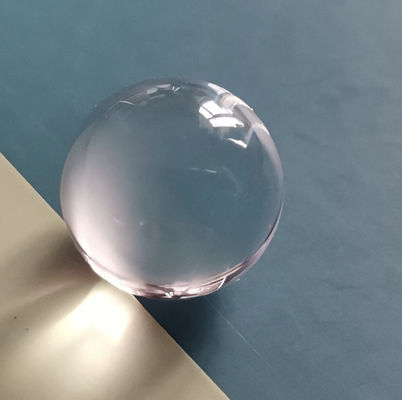

BK7 Material 1mm Diameter Ball Lens with Precision Surface Quality for Optical Applications
Product Specification
Place of Origin:
China
Brand Name:
Advance
Certification:
ROHS\Reach
Model Number:
as requirements
Minimum Order Quantity:
1
Price:
$0.2~$100
Payment Terms:
T/T&L/C
Supply Ability:
1000k/per month
Product Details
Highlight:
60/40 3mm glass ball lens
,60/40 5mm glass ball lens
,2mm sapphire ball lens
Warranty:
-
Customized Support:
OEM, ODM
Usage:
Optical
Structure:
Double Concave
Shape:
Spherical
Product Name:
10mm Half Ball Lens For Optical Communication System
Material:
Optical Glass
Application:
Optical Equipment
Diameter:
25 Mm
Name:
Optical Collimator Lens
Coating:
Customer Request
Type:
Optical Lens
Description:
Waterproof Lens
Surface Quality:
60/40
Color:
Transparent Clear
Port:
Shanghai
Interface Type:
Canon EF-S
Centerthickness:
5 Mm
Width Tolerance:
+/-0.01mm
Style:
Antique
Application Area:
Lighting,Laser Etc
Focal Length Tolerance:
+/-1%
Operatingtemperature:
-20 To 70 °C
Filter Ring Color:
Black,Sliver,Gold
Coating Choice:
Green
Refractiveindex:
1.52
Focal Length:
150mm
Product Description

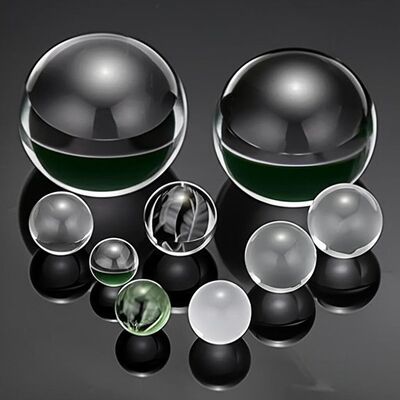

BK7/K9 Optical Glass & Sapphire Quartz Ball Lenses
Precision ball lenses available in diameters from 1mm to 10mm, manufactured from BK7/K9 optical glass, sapphire, and fused silica materials. These highly polished spheres deliver exceptional optical performance for demanding applications.
Product Overview
Ball lenses are highly polished spheres made of optically transparent homogeneous materials. Our carefully controlled manufacturing process produces spheres with precise diameters and unsurpassed surface quality. These components are essential for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling applications.
Applications
- Laser collimating and focusing systems
- Laser-to-fiber coupling
- Fiber-to-fiber coupling
- Fiber-to-detector coupling
- Fiber communication systems
- Endoscopy and microscopy
- Optical pick-up devices
- Laser measurement systems
Technical Specifications
| Parameter | Specifications |
|---|---|
| Diameter Range | 0.7mm - 400mm |
| Curve Radius Range | R1.5 - R∞ etc. |
| Diameter Tolerance | ±0.1, ±0.01, ±0.005 etc. |
| Surface Accuracy | λ, 1/2λ, 1/4λ, 1/10λ etc. |
| Thickness Tolerance | ±0.1, ±0.05, ±0.01 etc. |
| Centration | ±2', ±1' etc. |
| Aperture N | 5, 1 etc. |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc. |
| Surface Quality | 60/40, 40/20, 20/10, 10/5 etc. |

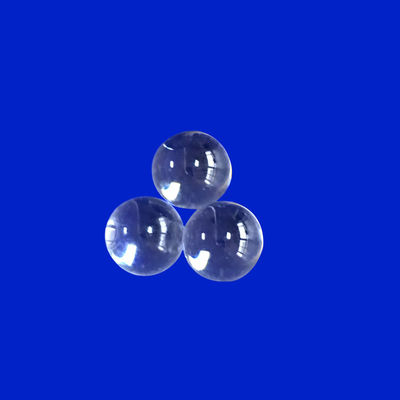

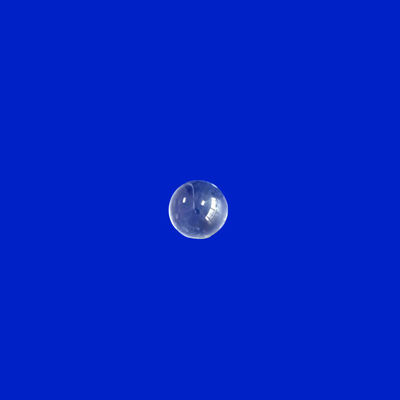

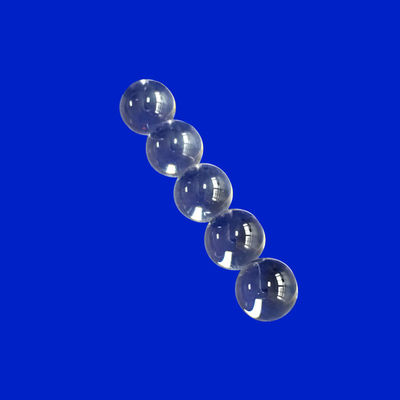

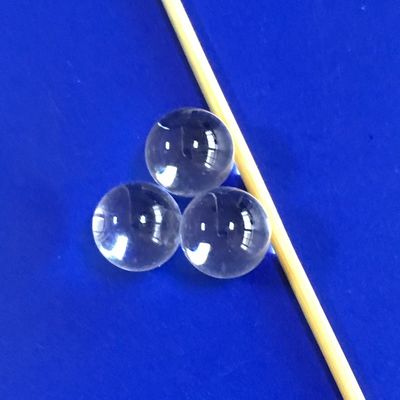

Product Images
Manufacturer Profile
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise established in September 2009. Our facility is located in Qingpu Industrial Park, Shanghai, conveniently situated just 30 minutes from Shanghai Hongqiao International Airport.
Company Capabilities
- Optical mechanical and electrical module development
- Precision optical element processing
- Camera lens design and processing
- Optical design and optical path optimization solutions
- Technical consultation and after-sales service
Application Fields
Machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, and scientific research institutions.
Company Advantages
- Comprehensive design, production and sales capabilities with one-stop procurement services
- Tens of thousands of optical molds and samples for fast, low-cost proofing services
- Early involvement in customer R&D with feasible plans and suggestions to minimize project risks
Frequently Asked Questions
What are your main products and applications?
We specialize in optical design, optical element processing, and lens assembly including spherical lenses, aspherical lenses, cylindrical lenses, reflector mirrors, filters, rod lenses, and camera lenses. Our products are widely used in imaging, laser, and lighting applications.
What are your advantages?
We maintain approximately ten thousand optical modules and fixtures in stock and employ outstanding technicians and managers. This enables us to provide excellent quality with short lead times while saving development costs for customers. We also help optimize optical systems and provide free optical solutions and suggestions.
What is your minimum order quantity?
10 pieces.
What is your lead time?
1 day for inventory items and 25-35 days for new projects.
What shipping methods do you use?
Typically FedEx, DHL, TNT, EMS, or customer-appointed carriers.
What are your payment terms?
T/T, L/C, VISA, PayPal, Alipay, or negotiated terms.
What is your quality guarantee period?
Three years.
