Product Details:
|
| Warranty: | - | Customized Support: | OEM, ODM |
|---|---|---|---|
| Usage: | Optical | Structure: | Double Concave |
| Shape: | Aspheric | Product Name: | 10mm Half Ball Lens For Optical Communication System |
| Material: | N-BK7 | Application: | Optical Equipment |
| Diameter: | Custom's Requirements | Name: | Optical Collimator Lens |
| Coating: | Customer Request | Type: | Optical Lens |
| Description: | Waterproof Lens | Surface Quality: | 60/40 |
| Color: | Transparent Clear | Port: | Shanghai |
| Highlight: | 200mm Camera Glass Ball,Infrared camera glass ball,Germanium lens crystal ball |
||

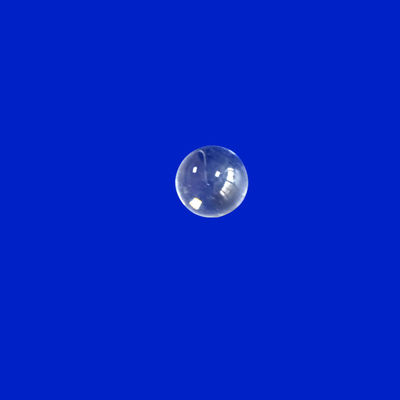

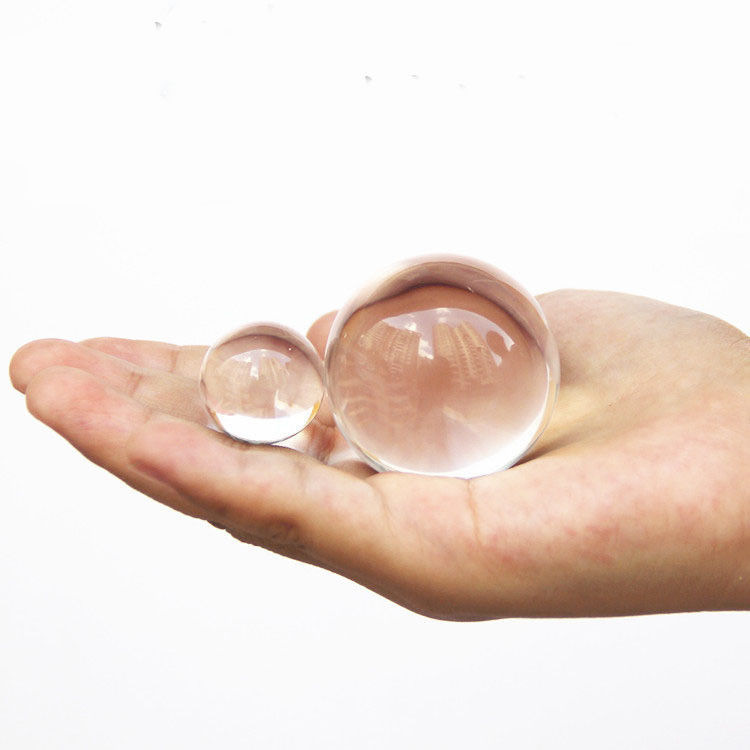

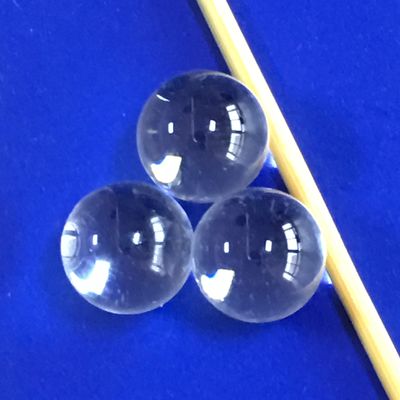

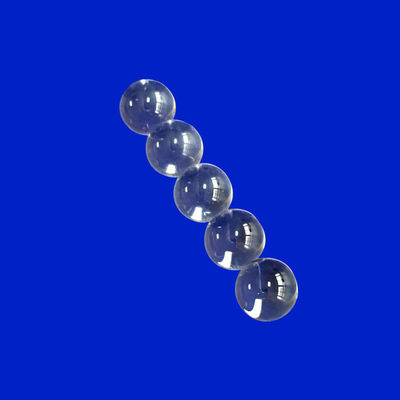

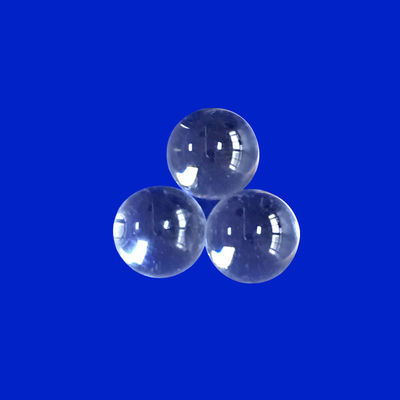

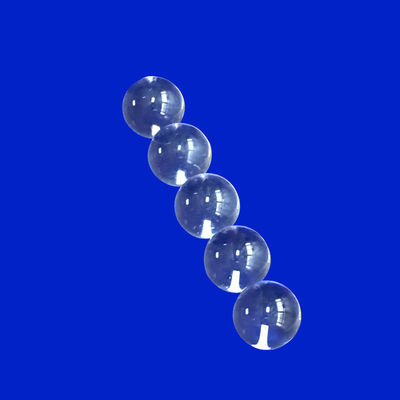

Ball lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, Solar-photo voltaic and fiber-to-detector coupling.
Ball lens and half ball lens feature short back focal lengths to minimize the distance needed from the ball Lens to the optical fiber.
Ball lenses are commonly used to improve signal quality in fiber coupling applications, or for use in bar code scanning applications or endoscopy.
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc. |
| Tolerance of diameter | +/-0.1,+/-0.01,+/-0.005 etc. |
| Surface accuracy | λ,1/2λ,1/4λ,1/10λ etc. |
| Tolerance of Thickness | +/-0.1,+/-0.05,+/-0.01 etc. |
| Centration | +/-2',+/-1' etc |
| Aperture N | 5,1 etc. |
| Irregularity ΔN | 2,1,0.5,0.2 etc. |
| Surface quality | 60/40.40/20,20/10,10/5 etc |
