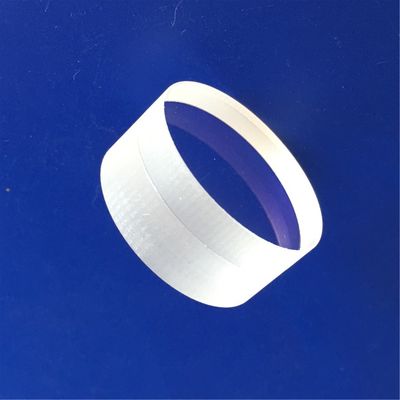

BK7 Resin 1.5mm To 300mm Double Concave Lens Sapphire
Product Specification
Place of Origin:
China
Brand Name:
Advance
Certification:
ROHS\Reach
Model Number:
as requirements
Minimum Order Quantity:
1
Price:
$0.2~$100
Payment Terms:
T/T&L/C
Supply Ability:
1000k/per month
Product Details
Highlight:
300mm double concave lens
,1.5mm double concave lens
,BK7 resin lens
Warranty:
-
Customized Support:
OEM, ODM
Usage:
Optical
Structure:
Plano-convex
Shape:
Spherical
Material:
Optical Glass
Focal Length:
Custom
Coating:
Upon Request
Diameter Tolerance:
+/-0.005mm
Surface Accuracy:
N=1~0.5
Centerthickness Tolerance:
+/-0.001mm
Focal Length Tolerance:
+/-1%
Surface Quality:
10/5~60/40
Application Area:
Imaging,Lighting,Laser Etc
Size:
OEM Size
Port:
Shanghai
Interface Type:
Canon EF-S
Diameter:
25 Mm
Centerthickness:
5 Mm
Width Tolerance:
+/-0.01mm
Style:
Antique
Application Area:
Lighting,Laser Etc
Operatingtemperature:
-20 To 70 °C
Filter Ring Color:
Black,Sliver,Gold
Coating Choice:
Green
Refractiveindex:
1.52
Focal Length:
150mm
Product Description
BK7 Resin 1.5mm To 300mm Double Concave Lens Sapphire
Product Overview
Wholesale manufacturers BK7 resin and other optical glass sapphire dome double concave cemented sapphire optical lens
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise, officially established in September 2009. The plant is located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport.
The company gathers several excellent technicians in the optical industry and has comprehensive supporting capabilities including optical mechanical and electrical design, processing, and sales services. We wholeheartedly provide each customer with high-quality and convenient products and services.
Business Scope
- Optical mechanical and electrical module development
- Precision optical element processing
- Camera lens design and processing
- Optical design and optical path optimization solutions
- Technical consultation and after-sales service
Application Fields
Machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, equipment, laser etching, special lighting, scientific research institutions, etc.
Company Advantages
- Comprehensive design, production and sales capabilities with one-stop convenient procurement services
- Tens of thousands of optical molds and samples for fast proofing services with low cost
- Early participation in customer's new product R&D, providing feasible plans and suggestions to minimize project detours
Cemented Lens Technology
Cemented lenses, also called achromatic lenses, are formed by cementing two single lens elements. The performance of multi-color (white light) imaging is significantly higher than that of a single lens. Achromatic lenses consist of two lenses of different materials glued together to correct the dispersion of the glass.
By eliminating the problem of chromatic aberration, achromatic lenses have been widely used in multi-color lighting and imaging, improving cost-effectiveness.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Materials | BK7 or other optical glass, quartz, sapphire, Ge, Si, ZnSe, CaF2 etc |
| Diameter | 1.5~300mm |
| Radius | R0.8mm-∞ |
| Focal length | -30000mm~+30000mm |
| Center thickness tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.005mm |
| Focal length tolerance | +/-1% |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Decenter | 3''~1'' |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging, Lighting, Laser etc |
Product Images
Company Profile
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise, officially established in September 2009. The plant is located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport.
Frequently Asked Questions
Q: What are your main products or which field do your products be used?
A: We are specialized in optical design, optical element processing, lenses assembly. Such as Spherical lens, Aspherical lens, Cylindrical lens, Reflector mirror, Filter, Rod lens, Camera lenses etc. Our products are widely used in imaging, laser, lighting and related fields.
Q: What's your advantage?
A:
- We have about ten thousands optical modules and fixtures in stock, and employ several outstanding technicians and managers, enabling us to provide excellent quality with short lead times while saving development costs for customers.
- We can help customers optimize optical systems and provide free optical solutions or suggestions.
Q: What's your MOQ?
A: 10pcs.
Q: What's your lead time?
A: 1 day for inventory and 25-35 days for new projects.
Q: What's your shipping type?
A: Usually by FedEx, DHL, TNT, EMS etc or customer appointed.
Q: What's your payment condition?
A: T/T, L/C, VISA, PayPal, Alipay or negotiation.
Q: What's your quality guarantee period?
A: Three years.
