Customized Optical Components Design Plano Convex Lens and Meniscus Lens with Coating
Product Specification
Place of Origin:
Shanghai, China
Brand Name:
Advance
Model Number:
OEM/ODM
Minimum Order Quantity:
1000 pieces
Price:
$3.50/pieces 1000-9999 pieces
Supply Ability:
10000 Piece/Pieces per Month
Product Details
Product Name:
Customized Optical Components Design
Lenses Material:
BK7 / Fused Silica / Sapphire
Diameter:
65/70/75mm (customizable)
Lenses Color:
Clear
Color:
Clear Optical Lens
Coating Choice:
Green
Product Description

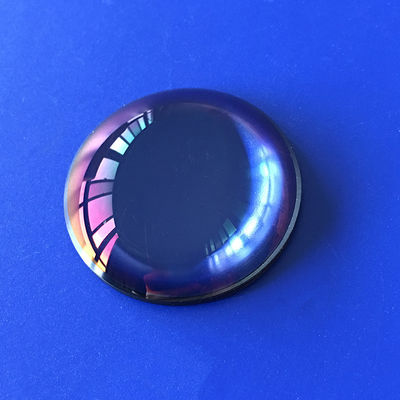

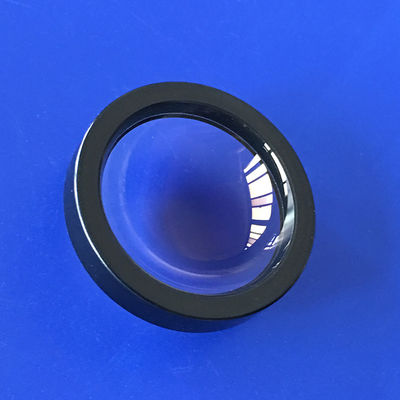

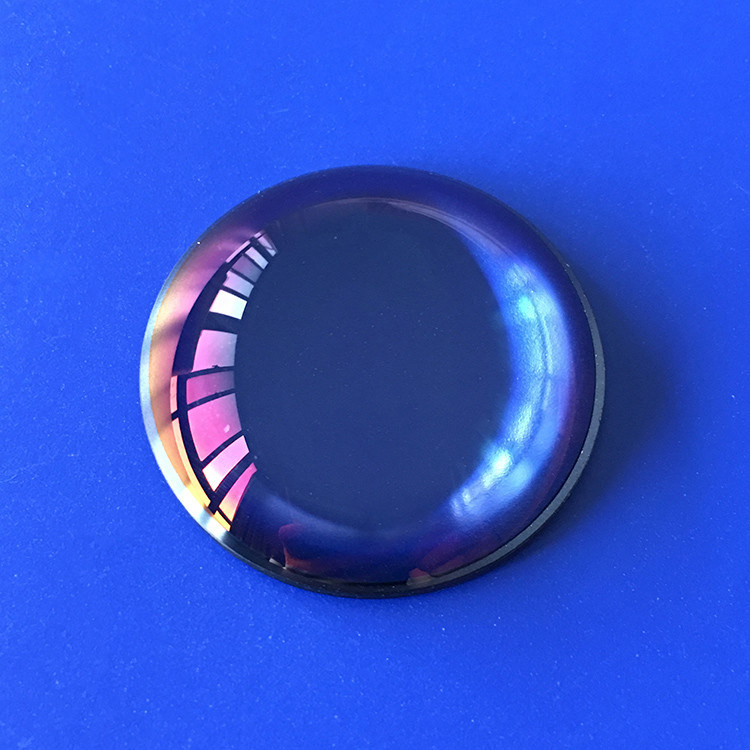

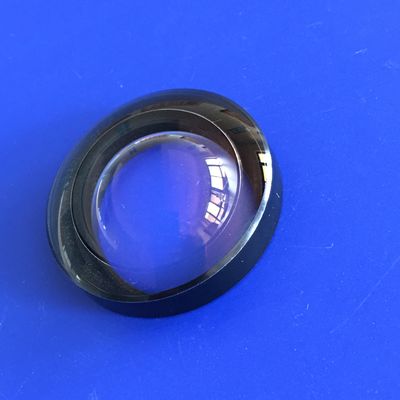

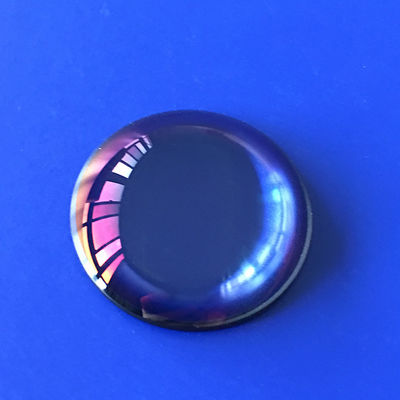

Customized Optical Components Design: Plano Convex Lens and Meniscus Lens with Coating
The Customized Optical Components Design: Plano Convex Lens and Meniscus Lens with Coating represents a high-precision solution for advanced optical systems requiring controlled light focusing, minimal aberration, and enhanced transmission efficiency. These lenses are manufactured from high-quality optical glass or crystal materials, ensuring superior refractive performance and stable optical behavior.
A Plano Convex Lens features one flat surface and one convex surface to converge parallel light beams to a single focal point, making it ideal for collimation and imaging applications. The Meniscus Lens, with convex and concave surfaces, is optimized to reduce spherical aberration and improve image quality in complex optical assemblies.
Coatings such as anti-reflective (AR) or dielectric layers are applied to minimize surface reflections, enhance transmission efficiency, and extend operational lifespan. By combining precise geometric design with tailored coating technology, these lenses provide versatile solutions for laser systems, imaging devices, optical sensors, and precision photonic instruments.
Technical Specifications
| Parameter | Plano Convex Lens | Meniscus Lens with Coating |
|---|---|---|
| Material | BK7 / Fused Silica / Sapphire | BK7 / Fused Silica / Sapphire |
| Diameter | 5 mm - 100 mm (customizable) | 5 mm - 100 mm (customizable) |
| Focal Length | 10 mm - 500 mm (customizable) | 10 mm - 500 mm (customizable) |
| Surface Quality | 40/20 or better | 40/20 or better |
| Coating Type | AR Coating / Dielectric Coating | AR Coating / Dielectric Coating |
| Transmission Range | 350 nm - 2,000 nm | 350 nm - 2,000 nm |
| Surface Form | Plano Convex | Meniscus (Concave-Convex) |
| Tolerance | ±0.01 mm | ±0.01 mm |
| Operating Temperature | -40°C to +85°C | -40°C to +85°C |
| Application | Laser systems, imaging, sensors | Laser systems, imaging, sensors |
Key Advantages
- High-precision light focusing: Plano convex lenses converge parallel beams with minimal distortion, while meniscus lenses reduce spherical aberrations
- Tailored coatings: Anti-reflective and dielectric coatings increase transmission efficiency and reduce unwanted reflections
- Wide material compatibility: Available in BK7, fused silica, and sapphire for various optical and thermal requirements
- Customizable dimensions: Diameter, focal length, and curvature can be optimized for specific system designs
- Enhanced optical performance: Improved image clarity, reduced ghosting, and higher overall efficiency in complex assemblies
- Durable and stable: Materials and coatings provide mechanical and environmental resilience for long-term operation
Applications
- Laser Systems: Beam focusing, collimation, and shaping for industrial, medical, or research lasers
- Imaging Devices: Cameras, microscopes, and telescopes requiring precise light control and reduced aberration
- Optical Sensors: High-accuracy sensors in industrial and scientific applications
- Scientific Instruments: Spectroscopy, photometry, and analytical devices needing high-quality optical components
- Fiber Optics: Coupling and alignment of laser sources to optical fibers
- Aerospace and Defense: Precision optical assemblies for remote sensing, guidance, or detection systems
Frequently Asked Questions
What is the difference between a Plano Convex Lens and a Meniscus Lens with Coating?
A Plano Convex Lens has one flat and one convex surface, ideal for converging parallel light with minimal distortion, while a Meniscus Lens has a concave and convex surface, designed to reduce spherical aberrations and enhance image quality. Both can be coated to improve transmission and reduce reflection losses.
Why is coating applied to these customized lenses?
Coatings, such as anti-reflective or dielectric layers, minimize surface reflections, increase light transmission efficiency, and enhance optical performance in precision systems.
Can these lenses be customized for specific optical systems?
Yes, diameter, focal length, curvature, material, and coating type can all be customized according to the requirements of your laser, imaging, or sensor application.
What materials are typically used for these lenses?
High-quality optical glass (BK7), fused silica, or sapphire is commonly used, depending on the desired spectral range, thermal stability, and mechanical durability.
In which industries are these customized lenses commonly used?
They are widely applied in laser systems, imaging devices, optical sensors, scientific instrumentation, fiber optics, aerospace, defense, and high-precision photonic applications.
The Customized Optical Components Design: Plano Convex Lens and Meniscus Lens with Coating provides a versatile and precise optical solution for high-performance photonic applications. With tailored dimensions, high-quality materials, and specialized coatings, these lenses offer excellent light focusing, minimized aberrations, and improved transmission efficiency. Their adaptability across laser systems, imaging devices, and optical sensors makes them essential components for engineers and designers seeking optimal optical performance, durability, and customizability in modern photonic systems.
