Product Details:
|
| Customized Support: | OEM, ODM | Usage: | Optical |
|---|---|---|---|
| Structure: | Custom | Shape: | Round |
| Material: | BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc | Size: | Custom |
| Coating: | Upon Request | Diameter Tolerance: | +/-0.005mm |
| Focal Length: | 14.5mm | Distortion: | <2% |
| Damage Threshold: | 50J/C㎡ | Application Area: | Imaging,Lighting,Laser Etc |
| High Light: | 14.5mm Convex Meniscus Lens,BK7 convex meniscus lens,Spherical varifocal lens |
||

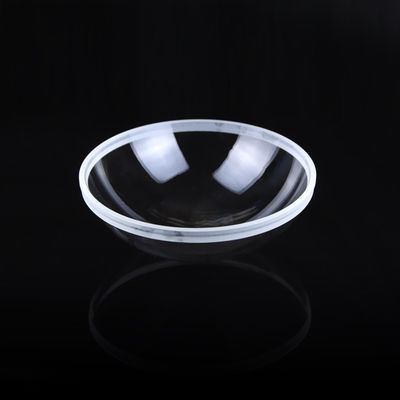

Optical Glass BK7 Spherical Meniscus Hemispherical Cover Varifocal Dome Lens
Advance Optical-Electronics supply a wide range of IR optics for use in the infrared wavebands.
Advance Optical-Electronics supply high quality infrared optics made to our/ your exact specification. Every component is individually tested by our highly skilled technicians in our state of the art metrology lab to ensure all components meet our high quality standards.
|
Materials
|
BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
|
|
Diameter
|
1.5~300mm
|
|
Radius
|
R0.8mm-∞
|
|
Focal length
|
-30000mm~+30000mm
|
|
Center thickness tolerance
|
+/-0.01mm
|
|
Diameter tolerance
|
+/-0.005mm
|
|
Focal length tolerance
|
+/-1%
|
|
Surface accuracy
|
N=1~3
|
|
Irregularity
|
ΔN=0.1~0.5
|
|
Decenter
|
3''~1''
|
|
Surface quality
|
10/5~60/40
|
|
Coating
|
Upon request
|
|
Application area
|
Imaging,Lighting,Laser etc
|
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
