185nm K9 Optical Glass Lens , 50mm Optical Ball Lens

I'm Online Chat Now

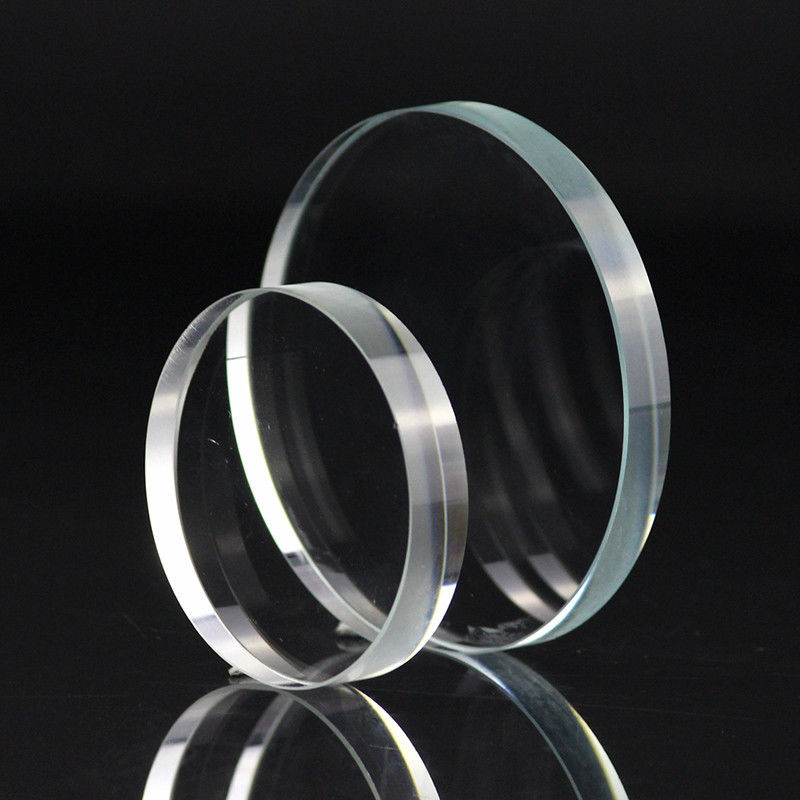

185nm K9 Optical Glass Lens , 50mm Optical Ball Lens

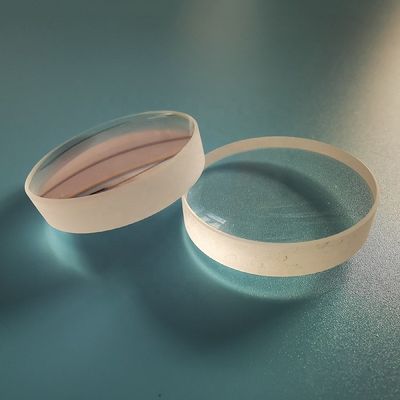

185nm K9 Optical Glass Lens , 50mm Optical Ball Lens
185nm K9 Optical Glass Lens , 50mm Optical Ball Lens 185nm K9 Optical Glass Lens , 50mm Optical Ball Lens

Large Image :  185nm K9 Optical Glass Lens , 50mm Optical Ball Lens

Product Details:
Place of Origin: Shanghai, China
Brand Name: Advance
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: $100.00/Pieces 10-99 Pieces
Packaging Details: Vacuum+EVA+Carton
Supply Ability: 10000000 Piece/Pieces per Month

185nm K9 Optical Glass Lens , 50mm Optical Ball Lens

Description
Usage: Optical Shape: Spherical
Material: BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc Focal Length: Custom
Diameter Tolerance: +/-0.005mm Surface Accuracy: N=1~0.5
Centerthickness Tolerance: +/-0.001mm Focal Length Tolerance: +/-1%
Surface Quality: 10/5~60/40 Application Area: Imaging,Lighting,Laser Etc
Highlight:

60/40 185nm K9 Optical Glass Lens

,

185nm Optical Glass Lens

,

60/40 50mm Optical Ball Lens

Custom 50 mm Sapphire K9 Ruby Fused Silica Spherical Lens Optical Ball Lens

Ball lenses are, as the name suggests, completely spherical lenses most commonly used to couple light in and out of fibres. Knight Optical supplies a range of stock ball lenses as well as bespoke designs to your own specifications. Our stock ball lenses offered in quartz have excellent UV and IR transmission between 185nm to 2000+nm, while our sapphire lens have a higher refractive index, allowing a very short fall back length to better facilitate fibre coupling. We can supply ball lens in a range of alternative materials and diameters. We are able to supply high precision grade 3 ball lenses, mid-range grade 25 ball lenses and commercial grade 100 ball lenses offering all grades to suit any application.

Specification
Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter 1.5~300mm
Radius R0.8mm-∞
Focal length -30000mm~+30000mm
Center thickness tolerance +/-0.01mm
Diameter tolerance +/-0.005mm
Focal length tolerance +/-1%
Surface accuracy N=1~3
Irregularity ΔN=0.1~0.5
Decenter 3''~1''
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc

185nm K9 Optical Glass Lens , 50mm Optical Ball Lens 0
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 4

Recommend Products
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 5
Company Profile
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 6


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 7
Exhibition
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 8
Packing & Delivery
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 9
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 10

FAQ
Q:What are your main products or Which fiefd do your products be used?
A:We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.


FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
