Product Details:
|
| Product Name: | Optical Glass Lens | Coating: | HMC, Upon Request |
|---|---|---|---|
| Lenses Color: | Clear | Material: | BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc |
| Diameter: | Custom | Diameter Tolerance: | +/-0.005mm |
| Surface Accuracy: | N=1~0.5 | Centerthickness Tolerance: | +/-0.001mm |
| Focal Length Tolerance: | +/-1% | Surface Quality: | 10/5~60/40 |
| Highlight: | 1.5mm 300mm Optical Glass Lens,1.5mm Optical Glass Lens,BK7 HMC Plano Concave Lens |
||

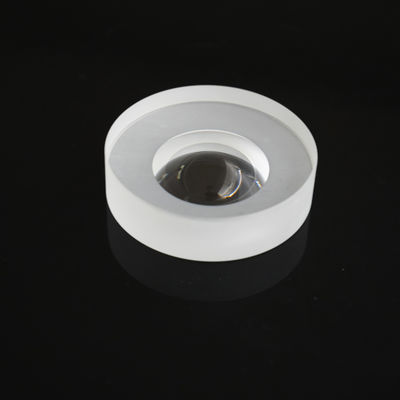

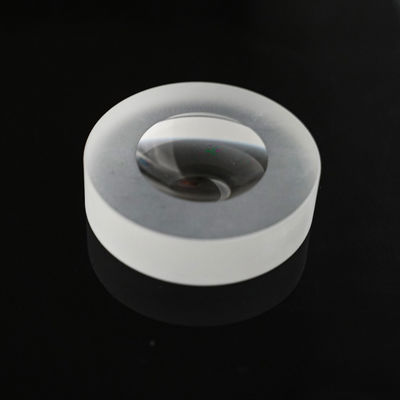

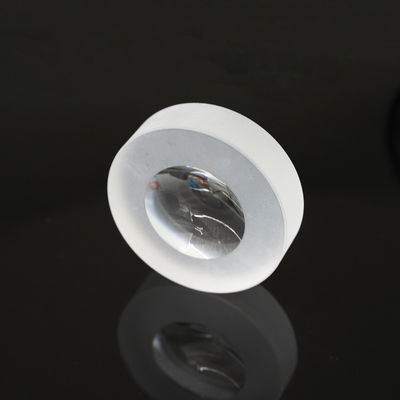

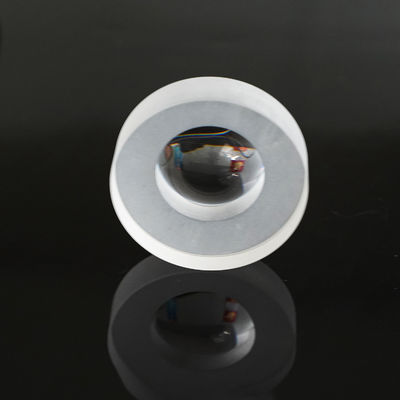

customized trial set clear optical lens instrument plano-concave lens transparent optical lens
Rod Lenses are a special variant of cylindrical lenses. They are complete rods where the light passes through the sides of the rod and focuses a line. Rod lenses have an outside face that is polished and the ends ground. The table below gives angular lengths of the line for a 1mm diameter laser beam. Typical uses for rod lenses would be to generate a line image from a circular laser beam.
Knight Optical supply rod lenses both mounted and unmounted. Our mounted rod lenses can be easily attached to laser heads and then easily rotated into the correct orientation.
| Materials | BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc |
| Diameter | 1.5~300mm |
| Radius | R0.8mm-∞ |
| Focal length | -30000mm~+30000mm |
| Center thickness tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.005mm |
| Focal length tolerance | +/-1% |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Decenter | 3''~1'' |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging,Lighting,Laser etc |
