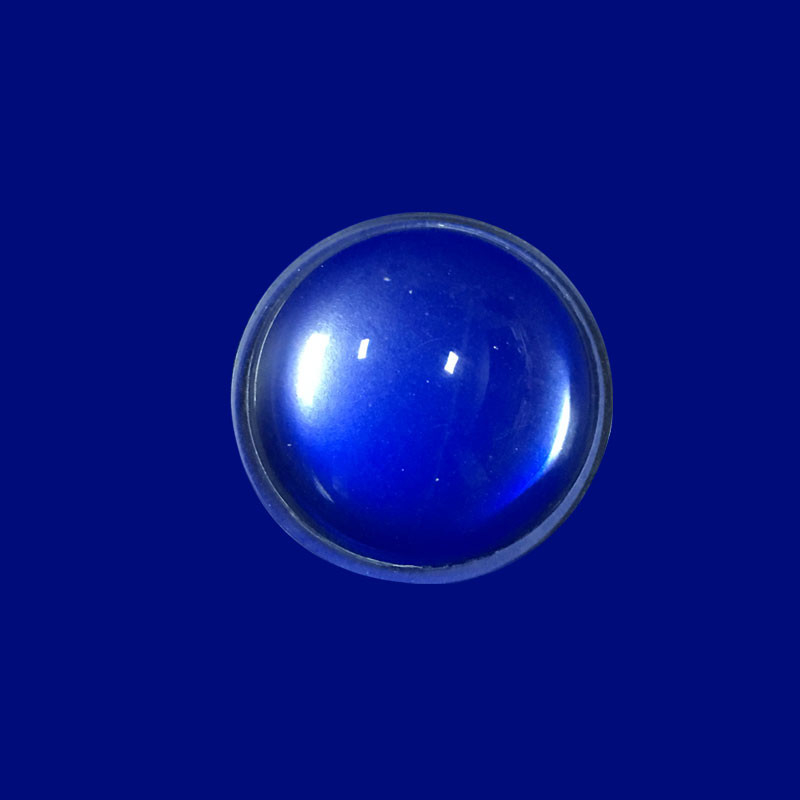

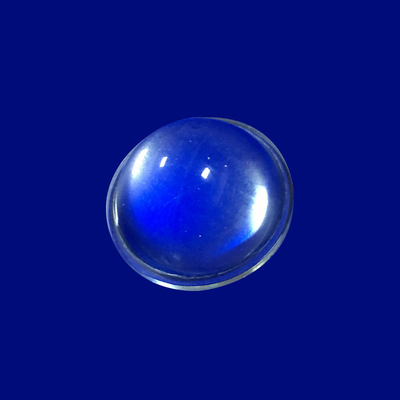

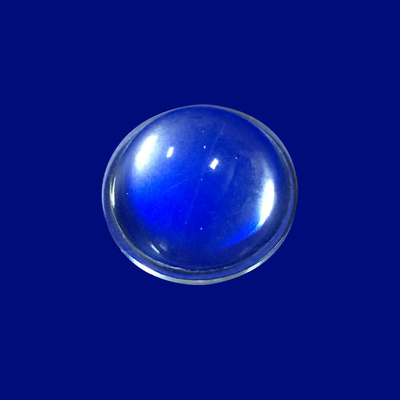

PMMA convex lens focus light optical acrylic LED lens

PMMA convex lens focus light optical acrylic LED lens

Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.
Esco manufactures Plano-convex lenses from S1-UV Grade Fused Silica, G1 Fused Quartz, Commercial Grade, and BK7 Optical Glass.Every optic is pitch polished, providing good surface quality and an exceptional low-cost imaging performance with a variety of light sources.



Specification



Material	BK7 or others optical glass,quartz,sapphire,Si,ZnSe,CaF2 etc.
Diameter	1.5~300mm
Center thickness tolerance	+/-0.01mm
Length tolerance	+/-0.01mm
Width tolerance	+/-0.01mm
Diameter tolerance	+/-0.0005mm
Surface accuracy	N=1~3
Irregularity	ΔN=0.1~0.5
Surface quality	10/5~60/40
Coating	Upon request
Application area	Imaging,Lighting,Laser etc



Recommend Products

Company Profile

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park.

Business scope:

optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields:

machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.





Certifications



Packing & Delivery



FAQ

Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.

Q: What's your MOQ?
A: 10pcs.

Q: What's your leadtime?

A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
